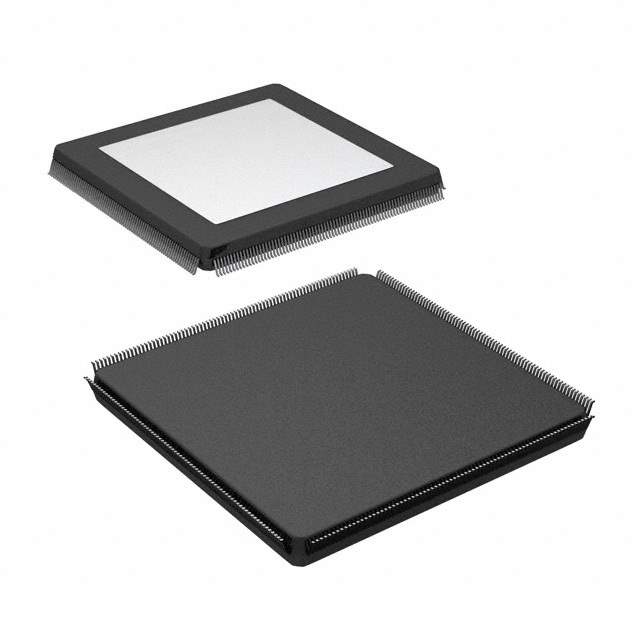

XC4036XL-1HQ304C Real Image
Same model may have multiple batches, images only for reference.

XC4036XL-1HQ304C

Part No XC4036XL-1HQ304C
Manufacturer Amd
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 256 I/O 304PQFP  /  series Field Programmable Gate Array (FPGA) IC 256 41472 3078 304-BFQFP Exposed Pad
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD Xilinx
Series XC4000E/X
Package Tray
Product Status Obsolete
Number of LABs/CLBs 1296
Number of Logic Elements/Cells 3078
Total RAM Bits 41472
Number of I/O 256
Number of Gates 36000
Voltage - Supply 3V ~ 3.6V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 304-BFQFP Exposed Pad
Supplier Device Package 304-PQFP (40x40)
Base Product Number XC4036XL
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 12
Win Source Part Number 1220804-XC4036XL-1HQ304C
Ultra Librarian 3D Model Ultra Librarian XC4036XL-1HQ304C CAD Model

Description

The Xilinx XC4036XL-1HQ304C is an obsolete FPGA (Field Programmable Gate Array) with 256 I/Os, 1296 LABs/CLBs, and 3078 logic elements/cells.

  • Manufacturer: Xilinx
  • I/Os: 256
  • LABs/CLBs: 1296
  • Logic Elements/Cells: 3078
  • Total RAM: 41472 bits
  • Gates: 36000
  • Voltage Range: 3V to 3.6V
  • Operating Temperature: 0°C to 85°C
  • Package: Tray
  • Mounting Type: SMD (SMT)
  • RoHS: Non-Compliant
