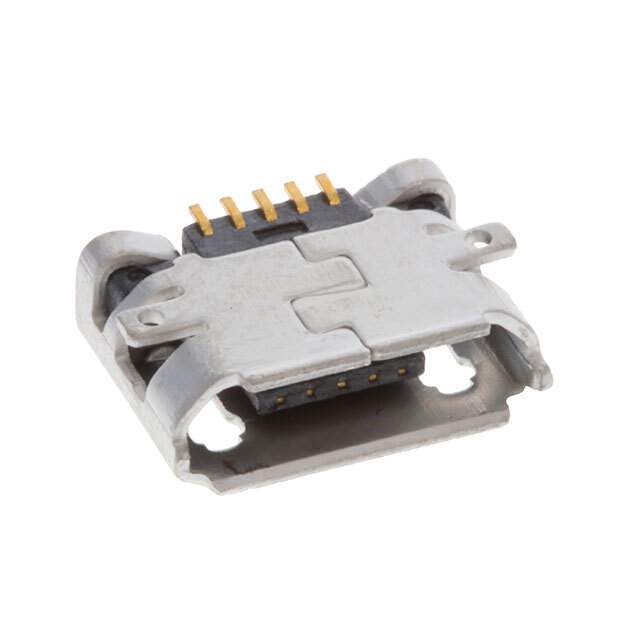

10118192-0001LF Real Image
Same model may have multiple batches, images only for reference.

10118192-0001LF

Part No 10118192-0001LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors
Description CONN USB MICRO B RECPT SMT R/A
Datasheet
10118192-0001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle
Mounting Feature Flange, Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C to 80°C
Number of Ports 1
Current Rating 1.8A per Contact
Voltage Rating 100VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 144110-10118192-0001LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10118192-0001LF CAD Model

Description

Product Overview

The 10118192-0001LF connector is an innovative product engineered to offer excellent connectivity and long-lasting performance. Its durability and reliability make it a preferred choice in electronic assembling.

Features and Benefits

  • Enhanced Durability: Built to endure extreme conditions and frequent use.
  • Seamless Integration: Designed for straightforward compatibility with various assemblies.
  • Cost-Effective: Offers an economic solution without compromising quality.

Applications

  • Renewable Energy Systems
  • Military Applications
  • Computer Peripherals
  • Automated Systems

Additional Details

This connector provides high stability and is designed to meet the comprehensive needs of complex electronic configurations, delivering superior performance and reliability across diverse industries.
