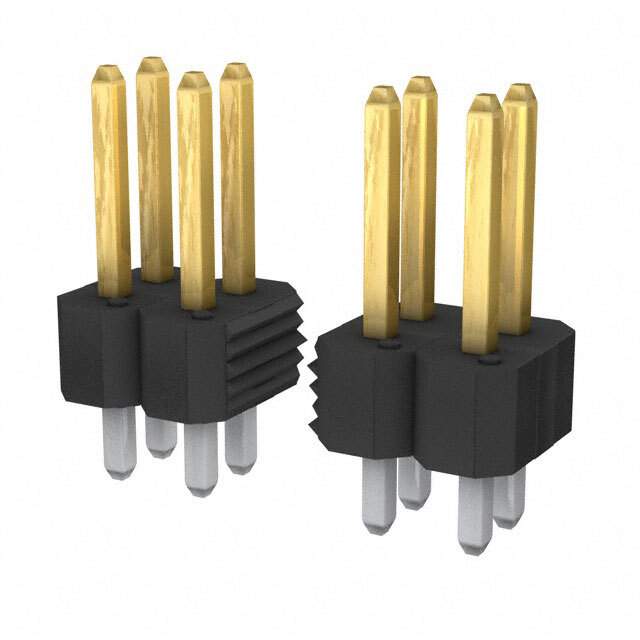

Same model may have multiple batches, images only for reference.

54102-S0510LF

Name: 54102-S0510LF
Brand: Amphenol FCI
SKU: 22327
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	54102-S0510LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	HEADER BERGSTIK STR
Datasheet	54102-S0510LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.425" (10.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100μin (2.54μm)
Win Source Part Number	128125-54102-S0510LF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 54102-S0510LF CAD Model

Alternative Products

Description

The 54102-S0510LF is an advanced component offering superior efficiency and performance. Its cutting-edge design makes it suitable for high-end applications.

Applications and Projects

Telecommunication systems
Automotive electronics
Renewable energy solutions

Features and Benefits

Energy-efficient design
Wide operating temperature range
Environmentally friendly materials

Additional Details

This component is produced with precision manufacturing techniques to ensure it meets stringent performance standards.
