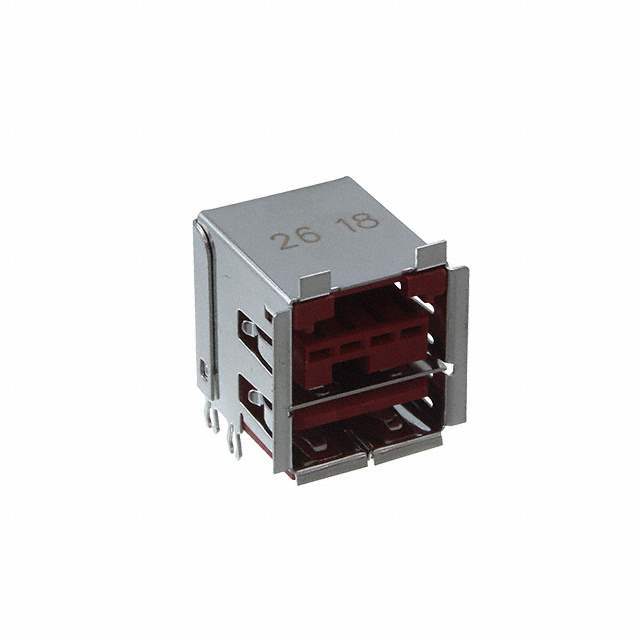

55917-001LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

55917-001LF

Part No 55917-001LF
Manufacturer Amphenol FCI
Catalog USB, DVI, HDMI Connectors —USB, DVI, HDMI Connector Assemblies
Description CONN RCPT USB2.0 A/PWR COMBO R/A
Datasheet
55917-001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tube
Part Status Active
Connector Type USB-A (USB TYPE-A) and Power, Combo
Number of Contacts 8
Gender Receptacle
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Operating Temperature -55°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian 55917-001LF CAD Model

Description

Amphenol’s USB+ Power Interconnect System was developed to enable additional power to be delivered to peripheral devices connected using USB 2.0 cable links.

● Includes four additional contacts for power delivery

● Rated at 5A/contact, to supplement the connector’s current-carrying capability.

● Eliminates the requirement for a separate power source

● Mates with a standard USB ‘A’ plug

● Individually keyed and color coded for 5V, 12V, and 24V
