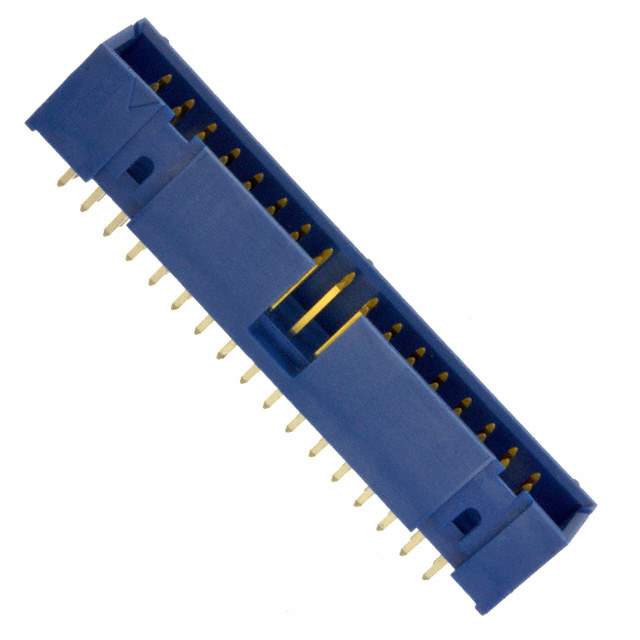

75869-106LF

Name: 75869-106LF
Brand: Amphenol FCI
SKU: 809482
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	75869-106LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 34POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Amphenol ICC (FCI)
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.377" (9.57mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Contact Finish Thickness - Post	78.7μin (2.00μm)
Manufacturer Pack Quantity	11
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809483-75869-106LF
Ultra Librarian 3D Model	Ultra Librarian 75869-106LF CAD Model

Alternative Products

Description

The 809483-75869-106LF header connector from Amphenol ICC (FCI) is a 34-position through-hole connector.

Applications: Board-to-Cable/Wire
Features: Keying Slot
Contact Type: Male Pin
Contact Material: Phosphor Bronze
Contact Finish: Gold
Pitch: 0.100" (2.54mm)
Insulation Material: Thermoplastic, Glass-Filled
Flammability Rating: UL94 V-0
Shrouded: 4 Walls
Row Spacing: 0.100" (2.54mm)
Contact Length (Mating): 0.236" (6.00mm)
Contact Length (Post): 0.120" (3.05mm)
Insulation Height: 0.377" (9.57mm)
Contact Shape: Square
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 11
