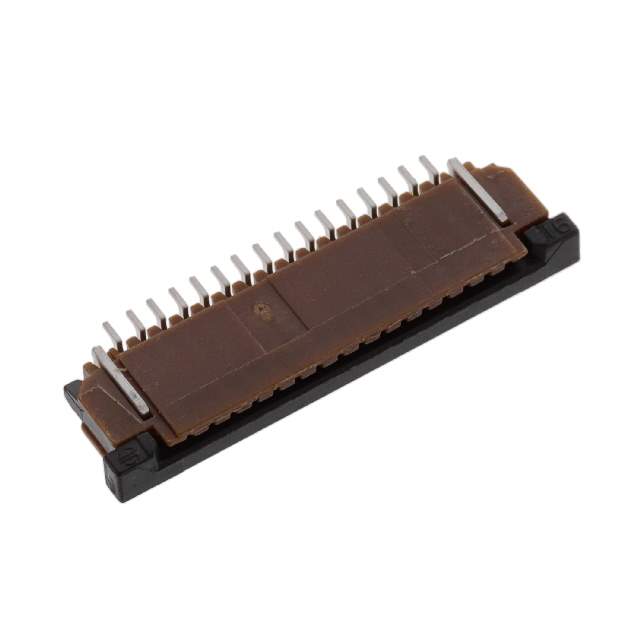

SFW16R-1STE9LF Real Image
Same model may have multiple batches, images only for reference.

SFW16R-1STE9LF

Part No SFW16R-1STE9LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 16POS 1.00MM R/A / Conn FFC/FPC Connector SKT 16 POS 1mm Solder RA SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series SFW-R
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 16
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.106" (2.70mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Housing Color Brown
Actuator Color Black
Mating Cycles 20
Win Source Part Number 794165-SFW16R-1STE9LF
Popularity Medium
Supply and Demand Status Limited
Family Name SFW
Introduction Date October 01, 2009
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SFW16R-1STE9LF CAD Model

Description

The Amphenol FCI SFW-R series connector is a 16-position zero insertion force (ZIF) connector.

  • Operating Temperature: -55°C to 105°C
  • Locking Feature: Slide Lock
  • Cable End Types: Straight or Tapered
  • Housing Material: Polyphenylene sulfide (PPS) and glass-filled
  • Contact Material: Phosphor bronze with tin contact finish
  • Suitable for: Flat Flex Type Connectors (FFC, FPC) (0.30mm or 0.33mm)
  • Voltage Rating: 100V
  • Current Rating: 1A
  • Mounting: Surface Mount or Right Angle
  • Mating Cycles: 20
  • Product: EAR99
  • Estimated EOL Date: 2027
