Same model may have multiple batches, images only for reference.

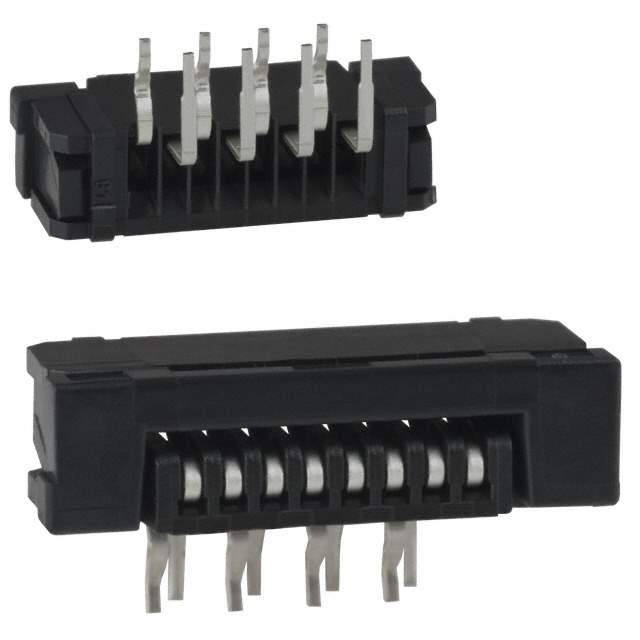

SLW8R-1C7LF Real Image
Same model may have multiple batches, images only for reference.

SLW8R-1C7LF

Part No SLW8R-1C7LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 1.00MM R/A / CAT NO. TABLE FOR 1mm SPACING CONNECTOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Flat Flex Type FFC, FPC
Mounting Style Through Hole, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.157" (4.00mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA), Nylon, Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Black
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 190
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811216-SLW8R-1C7LF
Ultra Librarian 3D Model Ultra Librarian SLW8R-1C7LF CAD Model

Description

The Amphenol ICC (FCI) 811216-SLW8R-1C7LF connector is a zero insertion force (ZIF) through-hole connector with a right-angle mounting style. It has 8 contacts with a 0.039" (1.00mm) pitch and a kinked pin termination with a tin contact finish.

  • Voltage Rating: 100V
  • Operating Temperature: -55°C to 85°C
  • Locking Feature: Slide Lock
  • Housing Material: Polyamide (PA), Nylon, Glass Filled
  • Supply and Demand Status: Limited
  • Popularity: Medium
