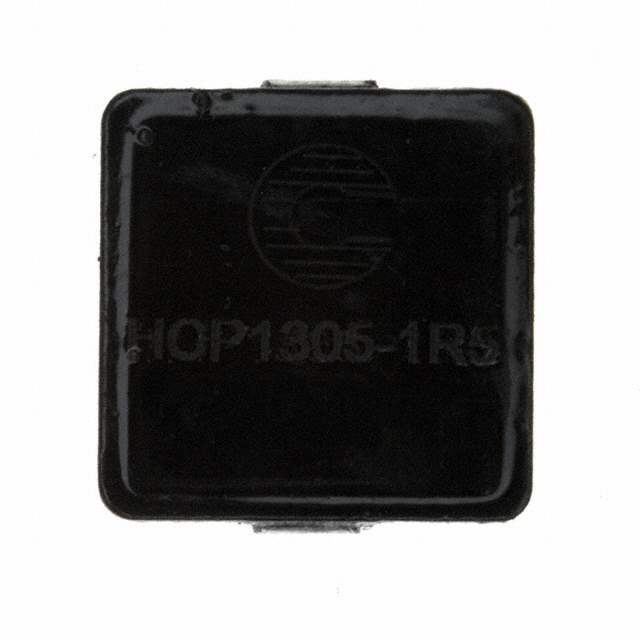

HCP1305-1R5-R Real Image
Same model may have multiple batches, images only for reference.

HCP1305-1R5-R

Part No HCP1305-1R5-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1.5UH 23A 4.1 MOHM SMD
Datasheet
HCP1305-1R5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Powdered Iron
Inductance 1.5μH
Tolerance ±20%
Current Rating 23A
Current - Saturation 48A
DC Resistance (DCR) 4.1 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 130651-HCP1305-1R5-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HCP1305-1R5-R CAD Model

Description

The HCP1305-1R5-R is a wirewound inductor that has an inductance of 1.5μH with a tolerance of ±20%. This inductor has a current rating of 23A with a saturation current of 48A. The HCP1305-1R5-R has a height of 0.197" (5.00mm) and a DC resistance of 4.1 mOhm Max. It is designed to operate in a temperature range of -55°C to 125°C and has a frequency test of 100kHz. The HCP1305-1R5-R is packaged in reel - TR and is an obsolete (EOL) product.
