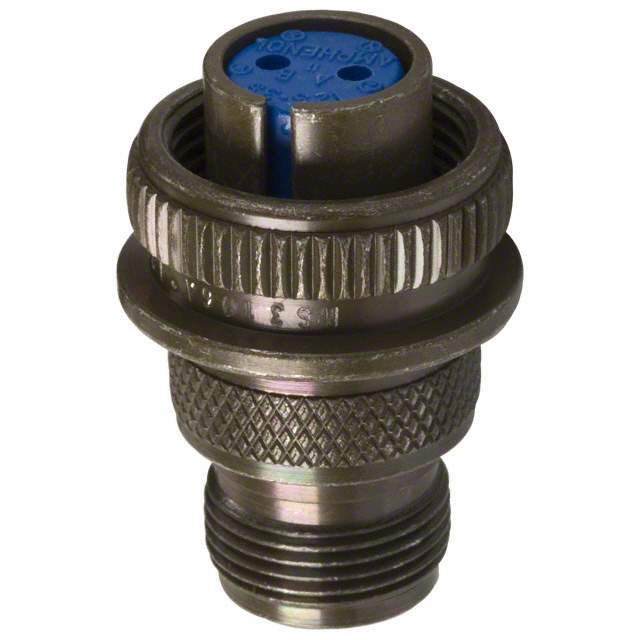

97-3106A-12S-3S(946) Real Image
Same model may have multiple batches, images only for reference.

97-3106A-12S-3S(946)

Part No 97-3106A-12S-3S(946)
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN PLUG 2POS W/SOCKETS
Datasheet
97-3106A-12S-3S(946) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Industrial Operations
Series 97
Packaging Bulk
Connector Type Plug, Female Sockets
Number of Positions 2
Shell Size - Insert 12S-3
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Shell Material, Finish Aluminum, Zinc Plated, Black
Contact Finish Silver
Voltage Rating DC 500VAC, 700VDC
Current Rating 13A
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 766542-97-3106A-12S-3S(946)
Popularity Medium
Supply and Demand Status Limited
Family Name 97
Introduction Date February 14, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 97-3106A-12S-3S(946) CAD Model

Description

The Amphenol Industrial Operations 97 series connector is a plug with female sockets.

  • Fastening Type: Threaded
  • Shell Size: 12S-3
  • Shell Material: Aluminum
  • Shell Finish: Zinc Plated, Black
  • Mounting Type: Free Hanging (In-Line)
  • Orientation: Normal
  • Current Rating: 13A
  • Voltage Rating: 500VAC or 700VDC
  • Termination: Solder Cup
  • Contact Finish: Silver
  • Operating Temperature: -55°C to 125°C
  • EOL Date: 2026
