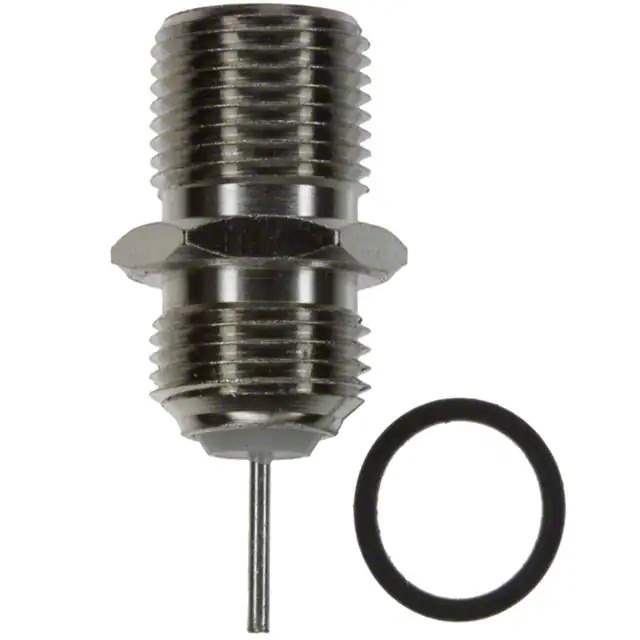

222144 Real Image
Same model may have multiple batches, images only for reference.

222144

Part No 222144
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN F RCPT STR 75 OHM SOLDER
Datasheet
222144 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style F Type
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Threaded
Frequency - Max 2 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 2 pcs - 1 Connector, 1 Gasket
Body Material Brass
Body Finish Nickel
Center Contact Plating Tin
Dielectric Material Polyoxymethylene (POM) Acetal, Polypropylene (PP)
Mating Cycles 500
Base Product Number 2221
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 854613-222144
Ultra Librarian 3D Model Ultra Librarian 222144 CAD Model

Description

The F Type Coaxial Connector is a high-quality connector designed for use in RF applications. It is manufactured by Amphenol-RF Division.

  • Connector Type: Receptacle, Female Socket
  • Fastening Type: Threaded
  • Material: Brass with Nickel Finish
  • Impedance: 75 Ohm
  • Maximum Frequency: 2 GHz
  • Mounting Type: Panel Mount
  • Applications: Telecommunications, Broadcasting, and Audio/Video
