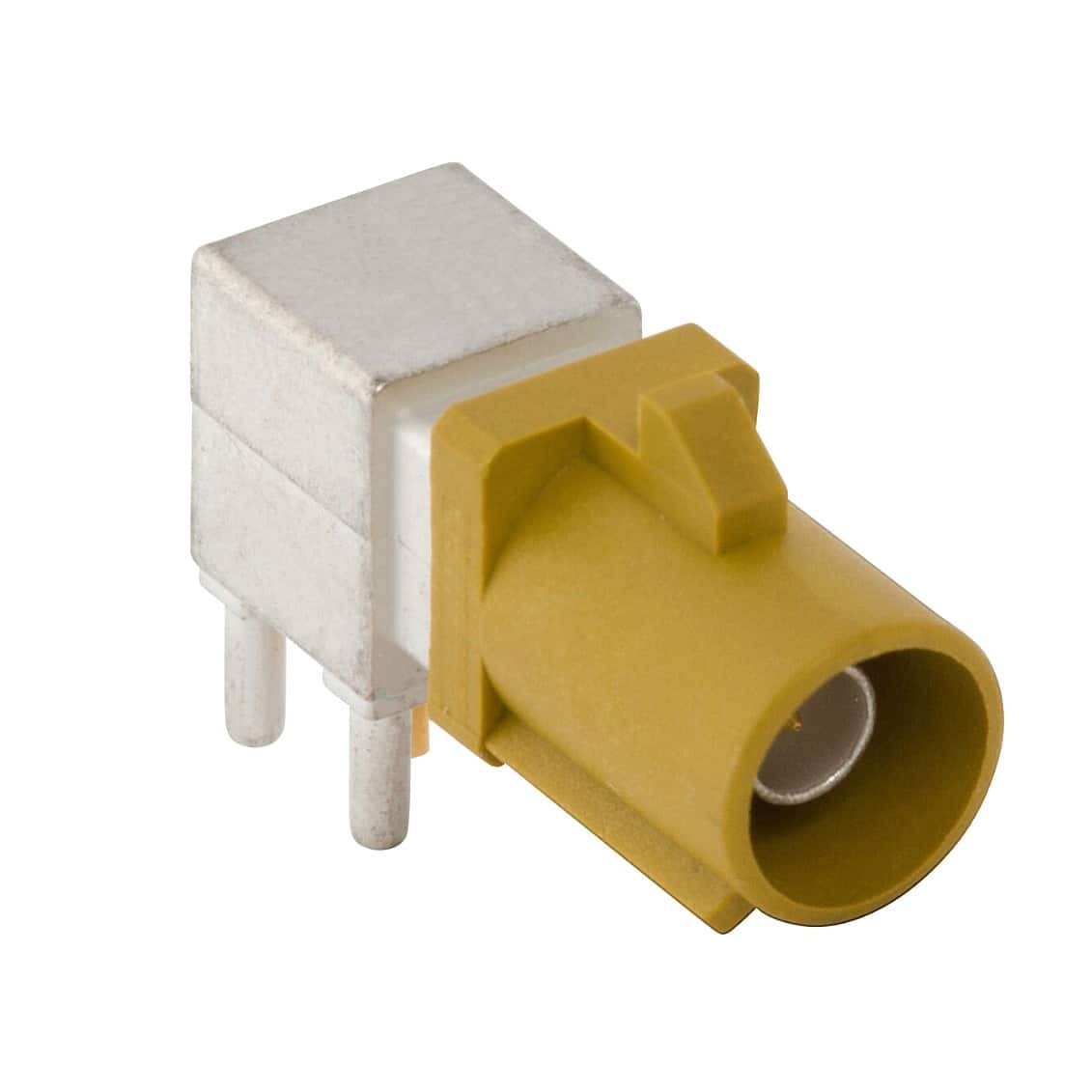

Same model may have multiple batches, images only for reference.
2FA1-NCRP-PCB-6
Same model may have multiple batches, images only for reference.

2FA1-NCRP-PCB-6

Part No 2FA1-NCRP-PCB-6
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description FAKRA RIGHT ANGLE PCB PLUG, 50 O
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Tray
Product Status Active
Connector Style SMB, Fakra
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Locking Ramp
Frequency - Max 4 GHz
Number of Ports 1
Features Code C
Housing Color Blue, Water
Center Contact Material Brass
Body Material Zinc Die Cast
Body Finish Tin
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 100
Base Product Number 2FA1
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 854960-2FA1-NCRP-PCB-6
Ultra Librarian 3D Model Ultra Librarian 2FA1-NCRP-PCB-6 CAD Model

Description

The 854960-2FA1-NCRP-PCB-6 is a plug male pin SMB and Fakra coaxial connector assembly from Amphenol-RF Division.

  • Connector Type: Coaxial Connector Assembly
  • Connector Style: Plug Male Pin SMB and Fakra
  • Manufacturer: Amphenol-RF Division
  • Fastening Type: Locking Ramp
  • Voltage Rating: Not Specified
  • Material: Zinc Die Cast
  • Housing Color: Blue Water
  • Impedance: 50 Ohm
  • Insertion Loss: Not Specified
  • Center Contact Material: Brass with Gold Plating
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 100
  • Mounting: Through Hole or Right Angle
  • Operating Temperature Range: -65°C to 165°C
  • Status: Active
  • REACH: Compliant
