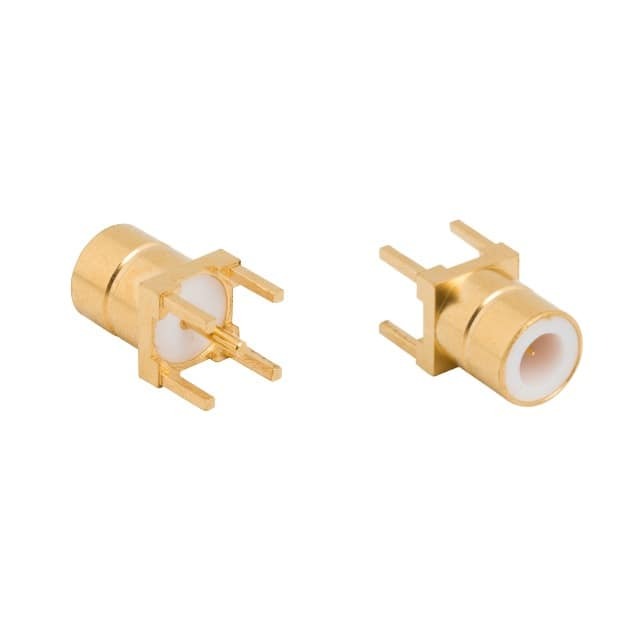

903-523J-71P
Same model may have multiple batches, images only for reference.

903-523J-71P

Part No 903-523J-71P
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMB JACK STR 75 OHM PCB
Datasheet
903-523J-71P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bulk
Product Status Active
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 10 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss 0.3dB
Base Product Number 903-523J
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 906654-903-523J-71P
Ultra Librarian 3D Model Ultra Librarian 903-523J-71P CAD Model

Description

The SMB Coaxial Connector is a high-quality connector designed for use in RF applications.

  • Connector Type: Jack, Male Pin
  • Fastening Type: Snap-On
  • Material: Brass
  • Finish: Gold
  • Impedance: 75 Ohm
  • Maximum Frequency: 10 GHz
  • Manufacturer: Amphenol-RF Division
