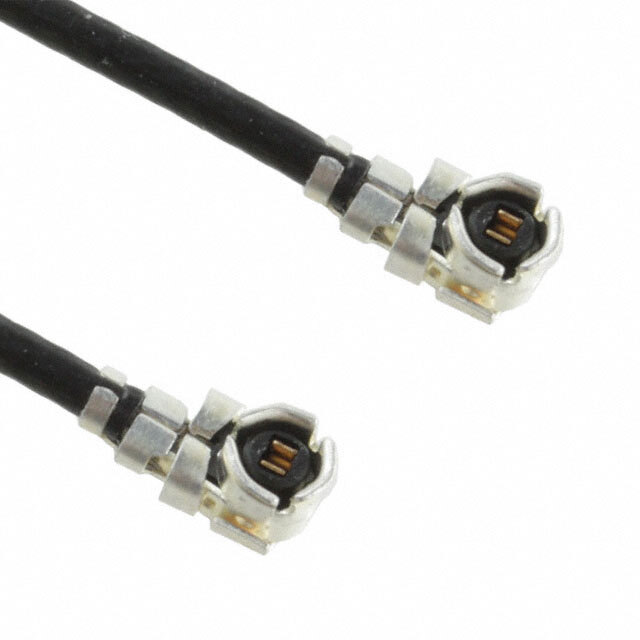

A-1PA-113-205B2 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

A-1PA-113-205B2

Part No A-1PA-113-205B2
Manufacturer Amphenol-RF Division
Catalog Coaxial Cables (RF)
Description CONN JUMPER AMC PLUG-PLUG 205MM / Cable Assembly Micro Coaxial 0.205m AMC to AMC PL-PL
Datasheet
A-1PA-113-205B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Series AMC
Gender Female to Female
Style UMCC to UMCC
1st Connector Ultra Miniature Coaxial Plug, Female Socket, Right Angle
2nd Connector Ultra Miniature Coaxial Plug, Female Socket, Right Angle
Length 8.071" (205.00mm)
Cable Type 1.13mm OD Coaxial Cable
Impedance 50 Ohm
Frequency - Max 6GHz
Color Black
Features Shielded
Operating Temperature Range -40°C ~ 90°C
Win Source Part Number 793145-A-1PA-113-205B2
Popularity Medium
Supply and Demand Status Limited
Family Name A-1PA-113
Introduction Date November 24, 2014
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian A-1PA-113-205B2 CAD Model

Description

The Amphenol RF Division 793145-A-1PA-113-205B2 is a shielded female to female cable assembly.

  • Length: 8.071 inches (205.00mm)
  • Cable Type: 1.13mm OD coaxial cable
  • Operating Temperature Range: -40°C to 90°C
  • Maximum Frequency: 6GHz
  • Impedance: 50 Ohm
  • Connectors: UMCC to UMCC style, ultra miniature coaxial plugs with female sockets and right angles
  • Family Name: A-1PA-113
  • Introduction Date: November 24, 2014
  • EOL Date: 2026
  • Supply and Demand Status: Limited
