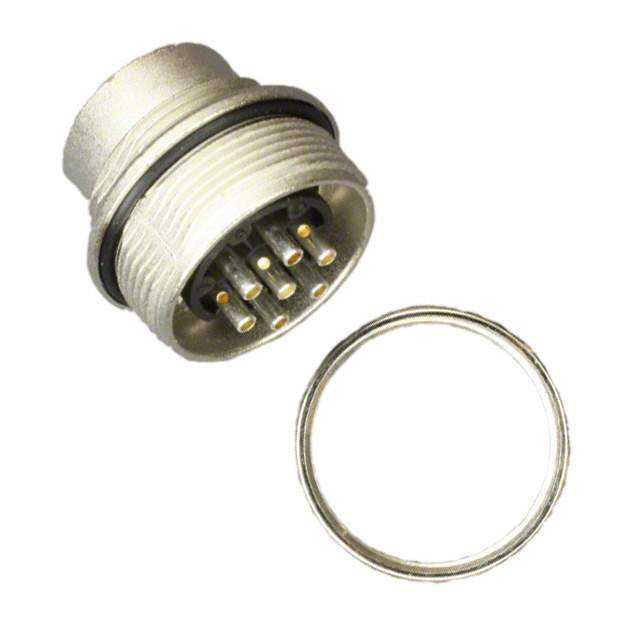

C091 31W007 100 2 Real Image
Same model may have multiple batches, images only for reference.

C091 31W007 100 2

Part No C091 31W007 100 2
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONN MALE RCPT 7POS FRONT MT
Datasheet
C091 31W007 100 2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Sine Systems Corp
Series C 091 D
Packaging Bulk
Connector Type Receptacle, Male Pins
Number of Positions 7
Shell Size - Insert DIN
Mounting Panel Mount
Termination Solder
Fastening Type Threaded
Orientation Keyed
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shell Material, Finish Die Cast, Nickel Plated
Contact Finish Silver
Features Shielded
Voltage Rating DC 300V
Current Rating 5A
Operating Temperature Range -40°C ~ 100°C
Win Source Part Number 769547-C091 31W007 100 2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C091 31W007 100 2 CAD Model

Description

The Amphenol C 091 D series connector is a shielded receptacle that has 7 male pins.

  • Current Rating: 5A
  • Voltage Rating: 300V DC
  • Operating Temperature: -40°C to 100°C
  • Ingress Protection: IP65/67
  • Keying: Yes
  • Mounting: Panel Mount
  • Material: Die-cast, Nickel-plated
