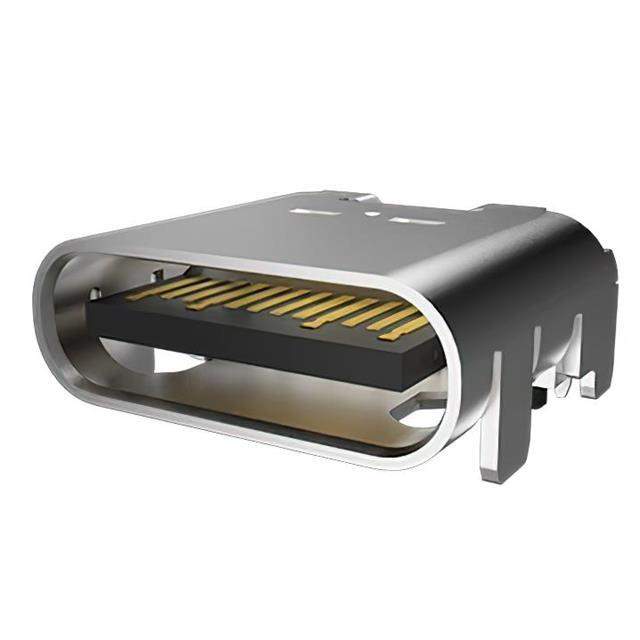

10137065-00021LF Real Image
Same model may have multiple batches, images only for reference.

10137065-00021LF

Part No 10137065-00021LF
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description USB 3.1 RECPT CONN / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Amphenol ICC (FCI)
Package Tape & Reel (TR)
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 10137065
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-10137065-00021LF
Standard Package 1,100
Win Source Part Number 1039912-10137065-00021LF
Ultra Librarian 3D Model Ultra Librarian 10137065-00021LF CAD Model

Description

The Amphenol ICC (FCI) 1039912-10137065-00021LF series is a USB-C (USB TYPE-C) receptacle connector with 24 contacts and a solder termination.

  • Shielding: shielded with a steel, stainless shell/shielding material
  • Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
  • Mounting: surface mount, right angle or through-hole mounted
  • Mounting Feature: horizontal
  • Current Rating: -Amps
  • Temperature Range: -55°C to 85°C
  • REACH: REACH affected
  • HTSUS: 8536.69.4040
