Same model may have multiple batches, images only for reference.

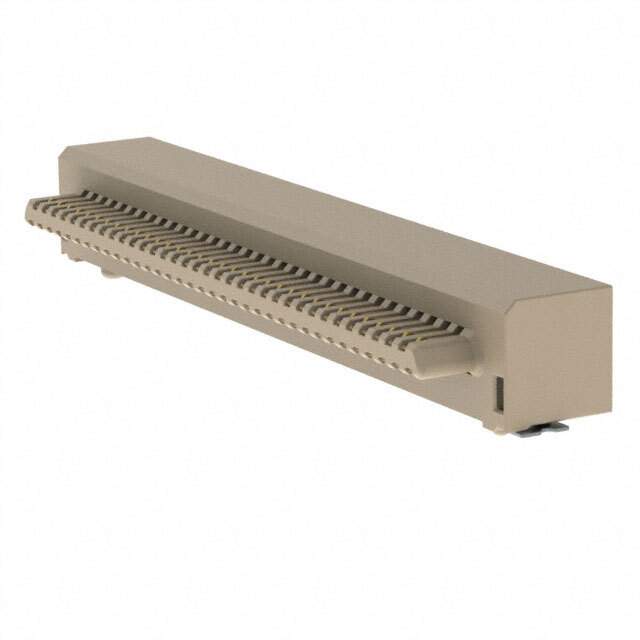

10138400-111169LF Real Image
Same model may have multiple batches, images only for reference.

10138400-111169LF

Part No 10138400-111169LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN PLUG 69POS R/A SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features 69 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold, GXT™
Manufacturer AMPHENOL
Series Conan™, MezzSelect™
Package Reel - TR
Mounting Surface Mount, Right Angle
Family Name 10138400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-5262-1, 609-5262-2, 609-5262-6
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905018-10138400-111169LF
Ultra Librarian 3D Model Ultra Librarian 10138400-111169LF CAD Model

Description

The AMPHENOL 905018-10138400-111169LF is a 69 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold, GXT™.

  • Package: Reel - TR
  • Mounting: Surface Mount, Right-Angle
  • Family: 10138400
  • Category: Connectors
  • Supply and Demand Status: Balanced
  • Quantity per Package: 500
  • MSL Level: 1 (unlimited)
  • Production Lead Time: 8 weeks
  • REACH: REACH unaffected
  • HTSUS: 8536.69.4040
  • Other Part Numbers: 609-5262-1, 609-5262-2, and 609-5262-6
