Same model may have multiple batches, images only for reference.

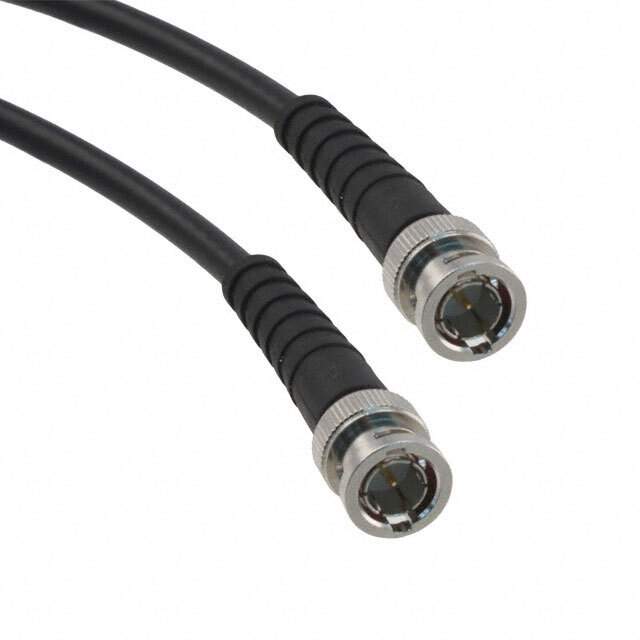

115101-20-M3.00 Real Image
Same model may have multiple batches, images only for reference.

115101-20-M3.00

Part No 115101-20-M3.00
Manufacturer Amphenol
Catalog Coaxial Cables (RF)
Description CBL ASSY BNC PLUG RG59 9.8' / Cable Assembly Coaxial BNC to BNC RG-59 118.1" (3.0m) 9.8'
Datasheet
115101-20-M3.00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Amphenol RF
Package Bag
Style BNC to BNC
1st Connector BNC Plug
2nd Connector BNC Plug
1st Contact Gender Male
2nd Contact Gender Male
Length 118.1" (3.0m) 9.8'
Cable Type RG-59
Cable Impedance 75 Ohms
Overall Impedance 75 Ohms
Color Black
Base Product Number 115101
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.20.0000
Other Names ACX2402
Standard Package 1
Win Source Part Number 1132572-115101-20-M3.00
Ultra Librarian 3D Model Ultra Librarian 115101-20-M3.00 CAD Model

Description

The 1132572-115101-20-M3.00 cable assembly from Amphenol RF is a BNC to BNC coaxial cable with a length of 3.0m.

  • Standard Package: 1
  • Available Color: Black
  • Impedance: 75-ohm
  • Material: High-quality materials that ensure its durability and reliability
  • Suitable for: Use in a wide range of electronic devices that require a BNC to BNC coaxial cable
  • Temperature Range: -40°C to 85°C
