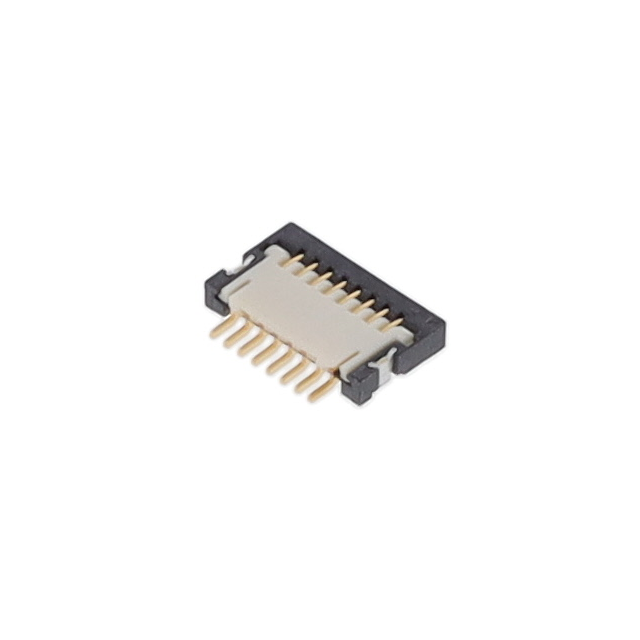

The 1135829-59453-082110EDHLF is a connector with 8 positions and a pitch of 0.020" (0.50mm).

• Positions: 8
• Pitch: 0.020" (0.50mm)
• Solder Retention: Yes
• Zero Insertion Force (ZIF): Yes
• Termination: Solder
• Contact Finish: Gold
• Contact Material: Copper Alloy
• Voltage Rating: 50V
• Height Above Board: 0.035" (0.88mm)
• Flat Flex Type: FPC
• Connector/Contact Type: Contacts, Top
• FFC, FCB Thickness: 0.30mm
• Locking Feature: Slide Lock
• Housing and Actuator Material: Thermoplastic, Glass-Filled, Halogen-Free
• Material Flammability Rating: UL94 V-0
• Housing Color: Black
• Mounting Technology: Surface Mount, Right Angle
• Standard Package: 5,000
• Mating Cycles: 10
• Operating Temperature Range: -55°C to 85°C
• Actuator Color: Black
• Alternative Parts (Cross-Reference): 59453082110EDHLF
