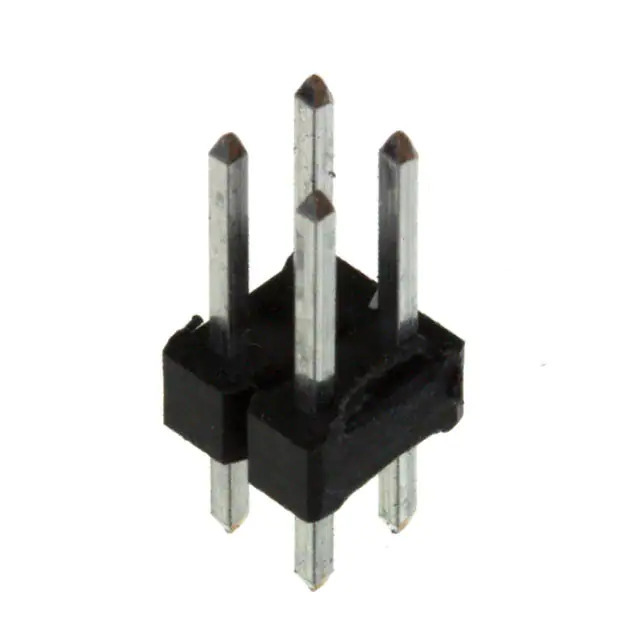

The Amphenol ICC (FCI) BERGSTIK® II 67997 series is a board-to-board header connector with a male pin contact type.

• Pitch: 0.100" (2.54mm)
• Number of Positions: 4
• Number of Rows: 2
• Shrouded: Unshrouded
• Fastening Type: Push-Pull
• Mating Contact Length: 0.230" (5.84mm)
• Post Contact Length: 0.120" (3.05mm)
• Overall Contact Length: 0.450" (11.43mm)
• Insulation Height: 0.100" (2.54mm)
• Contact Shape: Square
• Contact Finish: Tin, 100.0µin (2.54µm) Thickness
• Contact Material: Phosphor Bronze
• Insulation Color: Black
• Current Rating: 3A
• Mounting Type: Through Hole
• REACH: Compliant
• Flammability Rating: UL94 V-0
