Same model may have multiple batches, images only for reference.

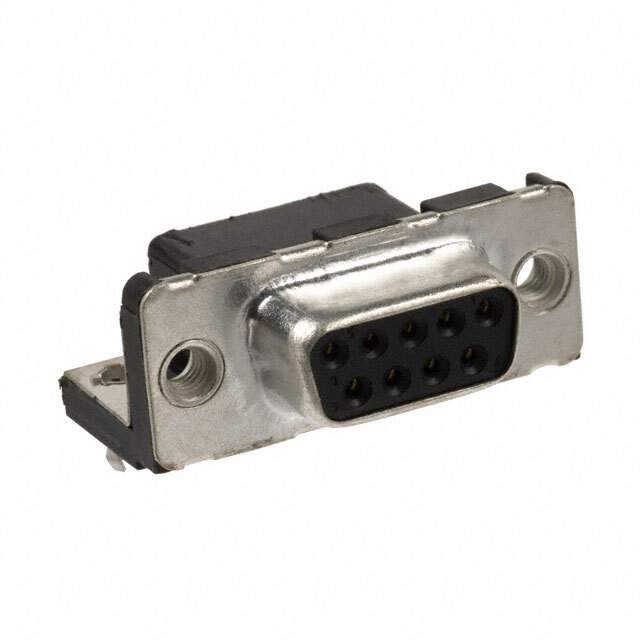

D09S13A4GX00LF Real Image
Same model may have multiple batches, images only for reference.

D09S13A4GX00LF

Part No D09S13A4GX00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing 0.409" (10.40mm)
Features Board Lock, Mounting Brackets
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D09S13
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-1484
Standard Package 30
Win Source Part Number 1333184-D09S13A4GX00LF
Ultra Librarian 3D Model Ultra Librarian D09S13A4GX00LF CAD Model

Description

This is a 9 position connector receptacle with female sockets, part of the D-Sub Connector Assemblies series.

  • Number of Positions: 9
  • Connector Type: Receptacle, Female Sockets
  • Mounting Type: Through Hole and Right Angle
  • Temperature Range: -55°C ~ 125°C
  • Voltage Rating: 300V
  • Current Rating: 5A per contact
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Shell Material: Steel
  • Shell Finish: Tin-Nickel Plated
  • Package: Tray
  • Standard Package: 30
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Other Part Numbers: 609-1484
  • Base Product Number: D09S13
  • RoHS Compliant: Yes
