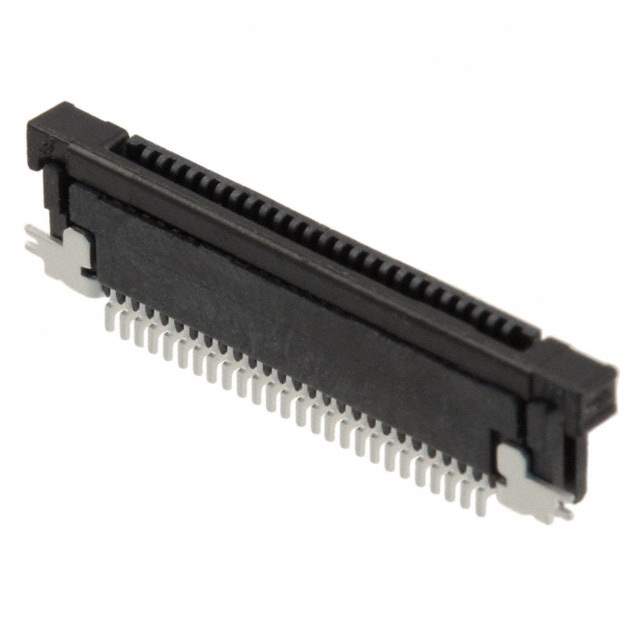

SFV26R-2STE1HLF Real Image
Same model may have multiple batches, images only for reference.

SFV26R-2STE1HLF

Part No SFV26R-2STE1HLF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 26POS 0.50MM R/A  /  26 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFV-R
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 26
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.33mm
Height Above Board 0.071" (1.80mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Actuator Color Brown
Mating Cycles 20
Base Product Number SFV26R
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-4323-1,609-4323-2,SFV26R2STE1HLF,609-4323-6,Q6578570
Standard Package 3,000
Win Source Part Number 976478-SFV26R-2STE1HLF
Ultra Librarian 3D Model Ultra Librarian SFV26R-2STE1HLF CAD Model

Description

The Amphenol ICC (FCI) 976478-SFV26R-2STE1HLF is a 26-position FFC, FPC (Flat Flexible) connector designed for use in zero insertion force (ZIF) applications.

  • Manufacturer: Amphenol ICC (FCI)
  • Part Number: 976478-SFV26R-2STE1HLF
  • Positions: 26
  • Type: FFC, FPC (Flat Flexible)
  • Application: Zero Insertion Force (ZIF)
  • Pitch: 0.020 inches (0.50mm)
  • Contact Finish: Tin
  • Packaging: Tape & Reel
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.071 inches (1.80mm)
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -55°C ~ 105°C
  • ECCN: EAR99
