Same model may have multiple batches, images only for reference.

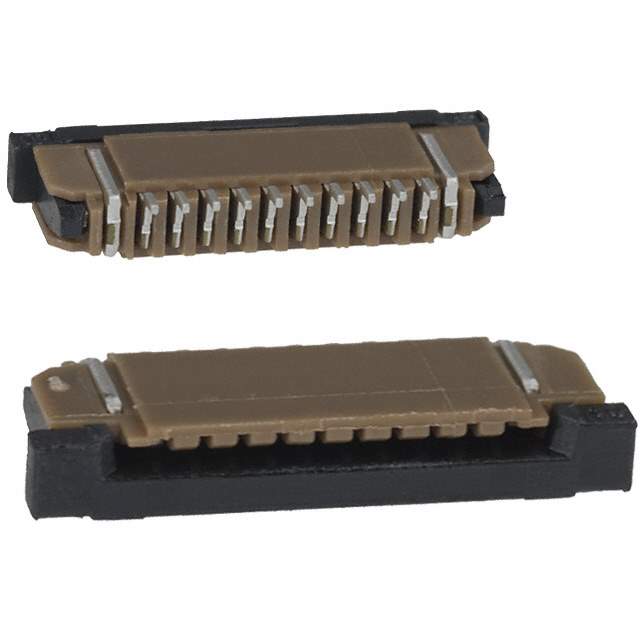

SFW10R-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW10R-2STE1LF

Part No SFW10R-2STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 10POS 1MM R/A  /  10 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW-R
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.106" (2.70mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Actuator Color Black
Mating Cycles 20
Base Product Number SFW10R
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1898-2,2266-SFW10R-2STE1LFTR,2266-SFW14R-1STE1LFTR,SFW10R2STE1LF
Standard Package 2,000
Win Source Part Number 1092512-SFW10R-2STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW10R-2STE1LF CAD Model

Description

The Amphenol ICC (FCI) SFW-R series connector is a high-quality electronic component that is ideal for use in FFC, FPC (Flat Flexible) Connectors.

  • Connector Type: FFC, FPC
  • Insertion Force: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Housing Material: Polyphenylene Sulfide (PPS), Glass-Filled
  • Voltage Rating: 100V
  • Current Rating: 1A
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Surface Mountable, Right-Angle
  • Standard Package: 2,000
  • Manufacturer: Amphenol ICC (FCI)
