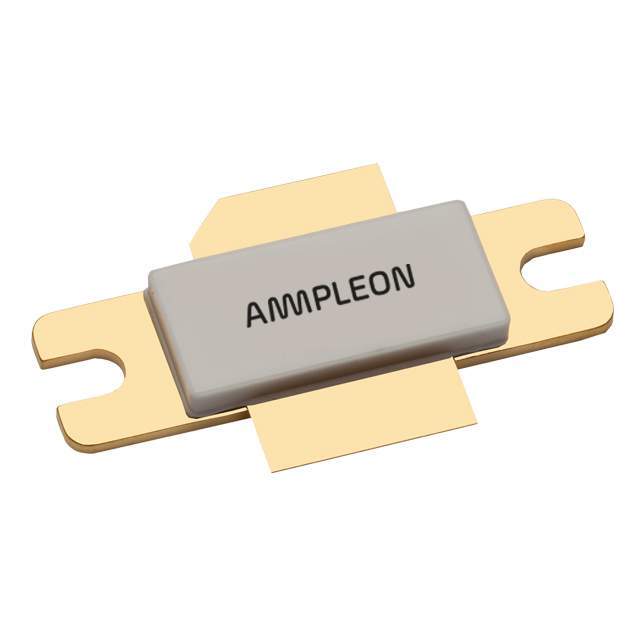

BLF7G22L-160,118 Ampleon USA Inc.
Same model may have multiple batches, images only for reference.

BLF7G22L-160,118

Part No BLF7G22L-160,118
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF FET LDMOS 65V 18DB SOT502A / Trans RF MOSFET N-CH 65V 36A 3-Pin SOT-502A T/R
Datasheet
BLF7G22L-160,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Ampleon USA Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Transistor Type LDMOS
Frequency 2.11GHz ~ 2.17GHz
Gain 18dB
Voltage - Test 28V
Current Rating 36A
Current - Test 1.3A
Power - Output 43W
Voltage Rating DC 65V
Package SOT-502A
Manufacturer Package LDMOST
Win Source Part Number 770156-BLF7G22L-160,118
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name BLF7G22L-160
Introduction Date December 07, 2015
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BLF7G22L-160,118 CAD Model

Description

The BLF7G22L-160,118 from Ampleon USA Inc. is an LDMOS transistor designed for high-power linear and CDM applications in the 2.11 GHz to 2.17 GHz frequency range.

  • Part Type: LDMOS transistor
  • Family: BLF7G22L-160
  • Package: SOT-502A
  • Frequency Range: 2.11 GHz to 2.17 GHz
  • Power Output: 43W
  • Gain: 18dB
  • Current Test: 1.3A
  • Voltage Test: 28V
  • Voltage Rating DC: 65V
  • EOL Status: Obsolete (EOL)
  • Supply/Demand Status: Limited
  • Application: Discrete semiconductor products
