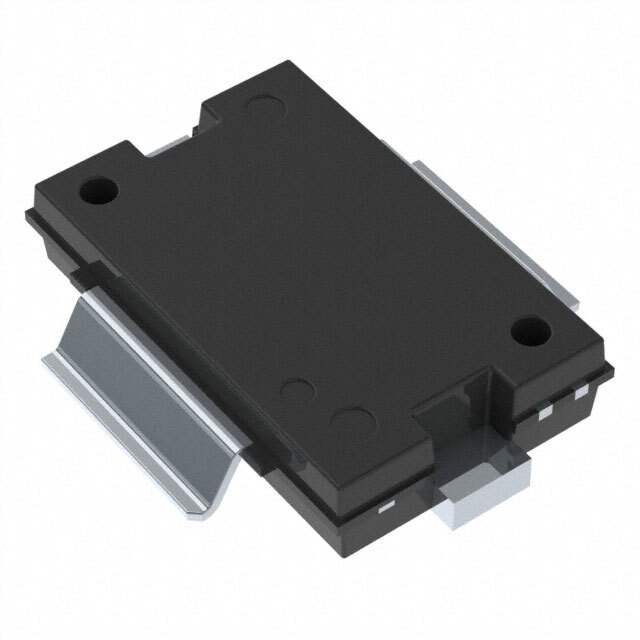

BLP15M9S70GZ Ampleon USA Inc.
Same model may have multiple batches, images only for reference.

BLP15M9S70GZ

Part No BLP15M9S70GZ
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF MOSFET LDMOS 32V SOT1483-1
Datasheet
BLP15M9S70GZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310065-BLP15M9S70GZ
Category Discrete Semiconductor Products >Transistors> FETs, MOSFETs RF FETs, MOSFETs
Manufacturer Ampleon USA Inc.
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Technology LDMOS
Configuration Dual, Common Source
Frequency 1.3GHz
Gain 23.5dB
Voltage - Test 32 V
Current Rating (Amps) 1.4µA
Ultra Librarian 3D Model Ultra Librarian BLP15M9S70GZ CAD Model

Description

  • High efficiency
  • Integrated dual sided ESD protection
  • Excellent ruggedness
  • High power gain
  • Excellent reliability
  • Easy power control
  • For RoHS compliance see the product details on the Ampleon website
