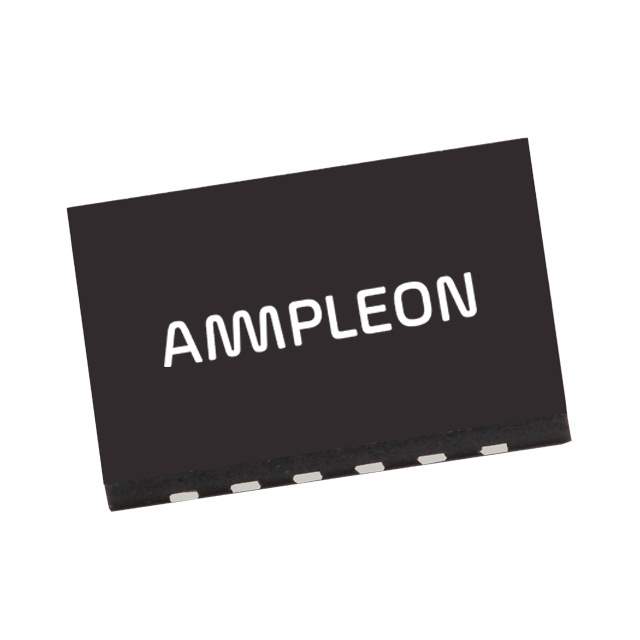

BLP7G22-10Z Real Image
Same model may have multiple batches, images only for reference.

BLP7G22-10Z

Part No BLP7G22-10Z
Manufacturer Ampleon USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description RF FET LDMOS 65V 16DB 12VDFN
Datasheet
BLP7G22-10Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 25 Weeks
Features RF Mosfet LDMOS (Dual), Common Source 28 V 110 mA 2.14GHz 16dB 2W 12-HVSON (6x4)
Manufacturer Ampleon USA Inc.
Package Reel - TR
Package 12-VDFN Exposed Pad
Case / Package 12-HVSON (6x4)
Family Name BLP7
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.29.0075
Other Part Number 934065973515, 568-12532-2, BLP7G22-10Z-ND, 568-12532-1, 568-12532-6
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864334-BLP7G22-10Z
Ultra Librarian 3D Model Ultra Librarian BLP7G22-10Z CAD Model

Description

The BLP7G22-10Z from Ampleon USA Inc. is an RF Mosfet LDMOS transistor that operates @ a frequency of 2.14GHz.

  • Frequency: 2.14GHz
  • Gain: 16dB
  • Power Output: 2W
  • Transistor Type: Dual
  • Operation: Common source
  • Test Voltage: 28V
  • Package: 12-HVSON (6x4)
  • Voltage Rating: 28V
  • Popularity: Popular choice for discrete semiconductor products
  • Supply and Demand: Limited
