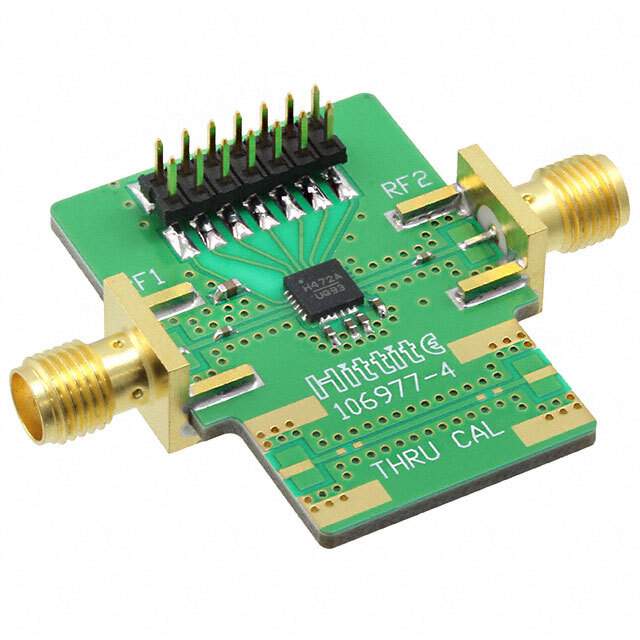

The HMC472ALP4 is a high-performance, digitally controlled variable gain amplifier (VGA) developed by Analog Devices Inc., a leader in high-performance semiconductors. This versatile component is designed for a wide range of applications, including wireless communication systems, test equipment, and sensors that require precise gain control.

Key Features

• Frequency Range: The HMC472ALP4 operates over a broad frequency range, making it suitable for various RF and IF applications.
• High Linearity: It offers excellent linearity, which is critical for maintaining signal fidelity in complex systems.
• Digital Gain Control: The VGA is controlled via a serial or parallel interface, allowing for precise and repeatable gain settings.
• Wide Gain Range: With a wide gain range, this device can amplify weak signals or attenuate strong signals, providing flexibility in signal chain design.
• Compact Package: The HMC472ALP4 is housed in a compact 4x4 mm QFN package, saving valuable board space in densely packed designs.

Applications

The HMC472ALP4 is ideally suited for a variety of applications, including:

• Wireless infrastructure (GSM, CDMA, LTE)
• RFID readers
• Test and measurement equipment
• Communication systems
• Satellite communications

Performance Specifications

With a focus on performance, the HMC472ALP4 provides robust specifications that ensure reliable operation:

• Gain Control Range: 0 to 31.5 dB in 0.5 dB steps
• Input IP3: +45 dBm (typical)
• Supply Voltage: +5V
• Control Voltage: 0 to +3.3V (TTL/CMOS compatible)

For designers and engineers looking for a variable gain amplifier with precise control and a broad dynamic range, the HMC472ALP4 from Analog Devices Inc. is an exceptional choice. Its blend of performance, flexibility, and compact form factor make it an invaluable component in advanced electronic systems.
