Introducing the AD2S80ATD Resolver-to-Digital Converter

The AD2S80ATD is a high-performance, monolithic Resolver-to-Digital Converter (RDC) developed by Analog Devices Inc., designed to decode the electrical output of a resolver into a digital angle position. This product is an essential component for applications requiring precise angular displacement and velocity measurements, commonly employed in industrial and aerospace systems.

Key Features of the AD2S80ATD

• High Accuracy: The AD2S80ATD boasts a high accuracy level, making it suitable for the most demanding applications where precision is critical.
• Variable Resolution: Users can select the resolution according to their specific needs, ranging from 10 to 16 bits, allowing for flexibility across different applications.
• Dynamic Performance: With its ability to track rapid changes in angle, the device is perfect for applications involving high-speed movements.
• Loss of Signal Detection: The converter includes a loss-of-signal circuitry that alerts the user if the resolver's signal is lost, enhancing system reliability.
• Self-Test Function: A built-in self-test capability allows for periodic system checks to ensure the converter is functioning correctly.

Applications

The AD2S80ATD is ideal for various high-performance applications, including:

• Robotics
• Antenna Positioning
• Machine Tool Control
• Avionics
• Feedback Systems for Servo Motors

Technical Specifications

At the core of the AD2S80ATD's technical prowess are specifications that cater to rigorous industrial demands:

• Supply Voltage: ±15 V
• Tracking Rate: Up to 1024 rev/sec
• Operating Temperature Range: -55°C to +125°C

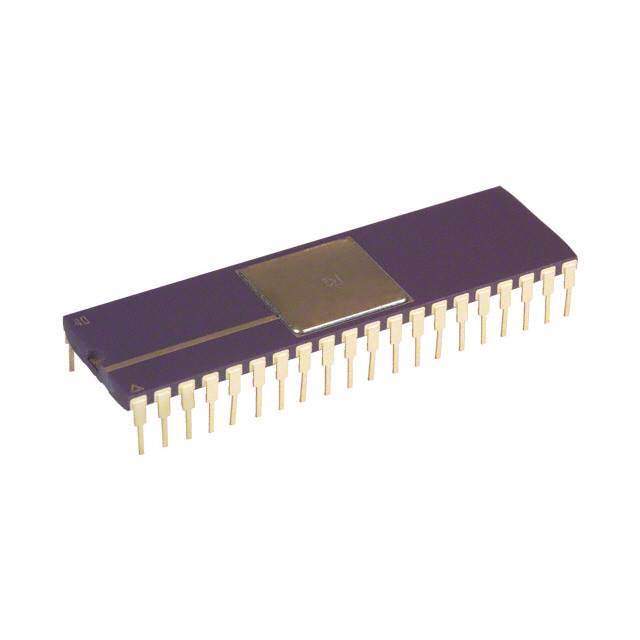

• Package: 40-Lead Ceramic DIP (Dual In-line Package)

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the AD2S80ATD is no exception. It is manufactured to the highest standards, ensuring long-term reliability and performance in even the most challenging conditions.

For engineers and system designers requiring accurate angular measurements with high reliability, the AD2S80ATD from Analog Devices Inc. is a top-tier solution that promises to deliver exceptional performance tailored to your specific needs.
