Product Overview: AD521KDZ Precision Instrumentation Amplifier

The AD521KDZ from Analog Devices Inc. is a state-of-the-art precision instrumentation amplifier designed for a wide range of applications requiring high accuracy, low noise, and stability. This advanced component is ideal for use in medical instrumentation, industrial process controls, and precision data systems where signal integrity is paramount.

Key Features:

• High Accuracy: The AD521KDZ delivers exceptional accuracy with a high gain accuracy of ±0.5% maximum (G = 1) and a nonlinearity of only 0.01% maximum (G = 10).
• Low Offset Voltage: It features a low offset voltage of 50 µV maximum and an offset voltage drift of just 0.6 µV/°C, ensuring consistent performance over a range of temperatures.
• Wide Gain Range: With a user-selectable gain range from 1 to 10,000, the AD521KDZ provides versatile amplification options for various signal levels.
• Low Noise: The device boasts a low noise density of 0.25 µV p-p (0.1 Hz to 10 Hz), making it suitable for applications requiring a clean signal amplification.
• High Common-Mode Rejection: With a common-mode rejection ratio (CMRR) of 120 dB minimum (G = 10), the AD521KDZ effectively minimizes unwanted common-mode signals.
• Excellent Power Supply Rejection: It also provides excellent power supply rejection of 120 dB minimum, ensuring stable operation with fluctuating supply voltages.

Applications:

• Medical instrumentation
• Industrial process controls
• Precision data acquisition systems
• Strain gauges and transducer interfaces
• Thermocouple amplifiers

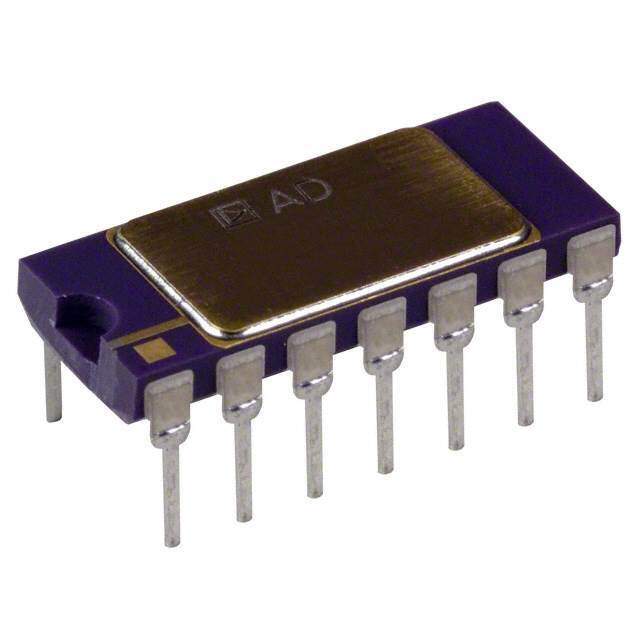

The AD521KDZ operates over a wide supply voltage range of ±4.5 V to ±18 V, accommodating various system designs and ensuring easy integration into both new and existing circuits. Its robust design is packaged in a 14-lead ceramic dual in-line package (CERDIP), providing reliable performance in harsh environments.

With its combination of precision, flexibility, and reliability, the AD521KDZ from Analog Devices Inc. is the go-to choice for professionals seeking an instrumentation amplifier that meets the most stringent requirements.
