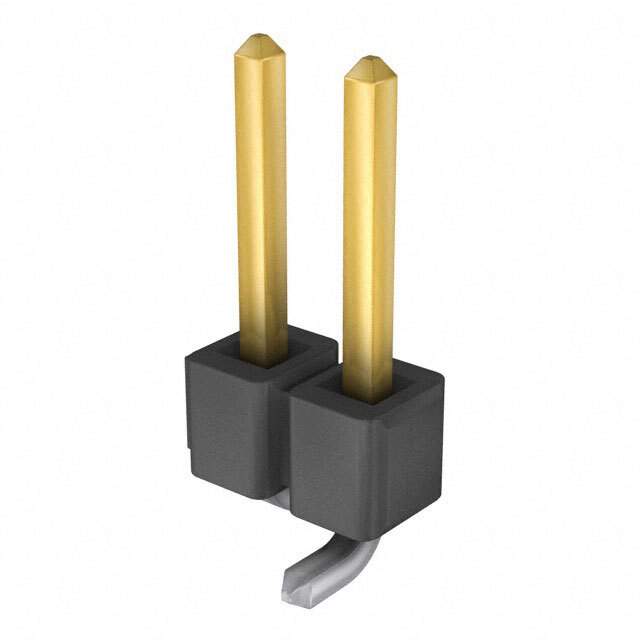

TSM-102-01-S-SV

Name: TSM-102-01-S-SV
Brand: Samtec Inc.
SKU: 1017894
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-102-01-S-SV
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 2POS 2.54MM / Connector Header Surface Mount 2 position 0.100" (2.54mm)
Datasheet	TSM-102-01-S-SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-102
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM10783,TSM-102-01-S-SV-ND
Standard Package	1
Win Source Part Number	1017894-TSM-102-01-S-SV
Ultra Librarian 3D Model	Ultra Librarian TSM-102-01-S-SV CAD Model

Alternative Products

Description

This male pin header connector from Samtec Inc. is a TSM series product with 2 positions.

Series: TSM
Positions: 2
Contact Shape: Square
Connection Style: Board-to-Board or Cable
Pitch-Mating: 0.100 inches (2.54mm)
Positions Loaded: All
Fastening Type: Push-Pull
Termination: Solder
Contact Material: Phosphor Bronze
Contact Finish: Gold (Mating), Tin (Post)
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C to 125°C
Flammability Rating: UL94 V-0
Voltage Rating: None
Mated Stacking Heights: None
Type: Unshrouded
Row Spacing-Mating: None
Contact Length-Post: None
Overall Contact Length: None
