The AD5232BRUZ10-REEL7 is a highly integrated digital potentiometer designed by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This device offers a reliable and precise solution for applications requiring digitally controlled resistance settings.

Key Features

• Dual Channel: This digital potentiometer features two independent channels, allowing for versatile control in various applications.
• Resolution: With 1024-position resolution, the AD5232BRUZ10-REEL7 offers fine adjustment capability, making it suitable for detailed calibration tasks.
• Resistance Options: The device is available with a nominal resistance of 10 kΩ, providing a wide range of adjustment for most applications.
• Nonvolatile Memory: Equipped with nonvolatile memory (EEPROM), the AD5232BRUZ10-REEL7 can store and recall resistance settings even after power cycling, ensuring consistent performance.
• Interface: The digital potentiometer uses a versatile SPI interface for communication, which is compatible with most microcontrollers and digital systems.

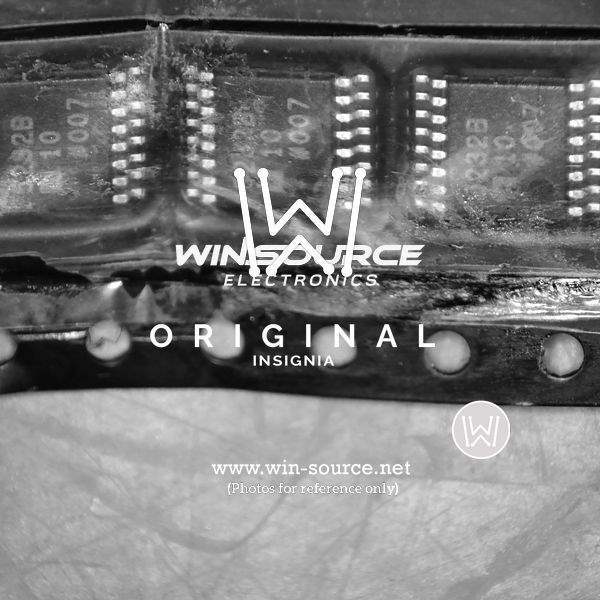

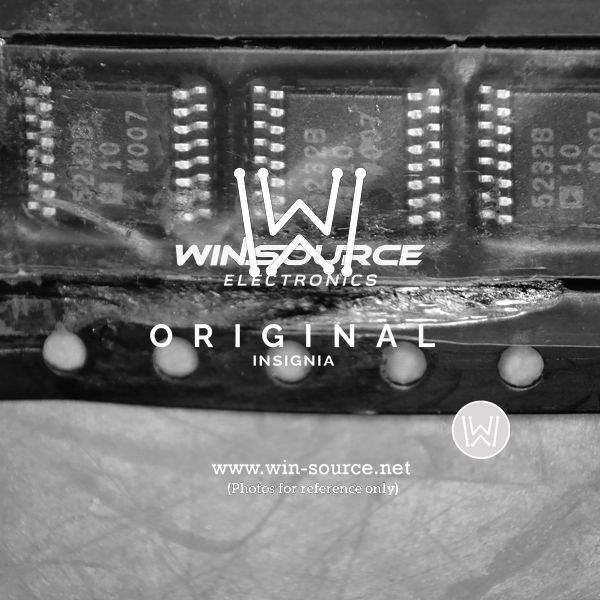

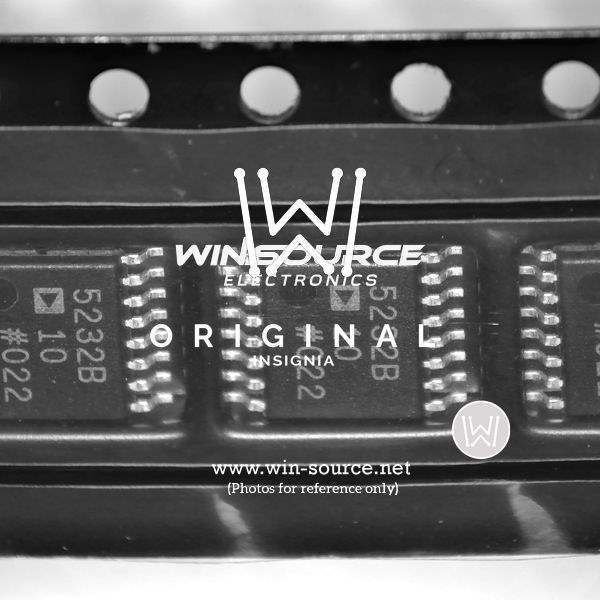

• Compact Packaging: Offered in a TSSOP (Thin Shrink Small Outline Package) form factor, this device is designed for space-constrained applications.
• Supply Voltage: The operating supply voltage ranges from 2.7 V to 5.5 V, accommodating a variety of system power requirements.

Applications

The AD5232BRUZ10-REEL7 is ideal for a wide range of applications, including:

• Automated product calibration
• Programmable filters and delays
• Adjustable power supplies
• LED brightness control
• Audio volume control

Quality and Reliability

Analog Devices Inc. ensures that the AD5232BRUZ10-REEL7 meets rigorous quality and reliability standards. The device is available in a tape and reel format (REEL7), which is suitable for automated manufacturing processes, reducing production time and costs.

With its combination of features, the AD5232BRUZ10-REEL7 from Analog Devices Inc. stands out as a versatile and reliable component for designers looking to integrate digital potentiometers into their electronic systems.
