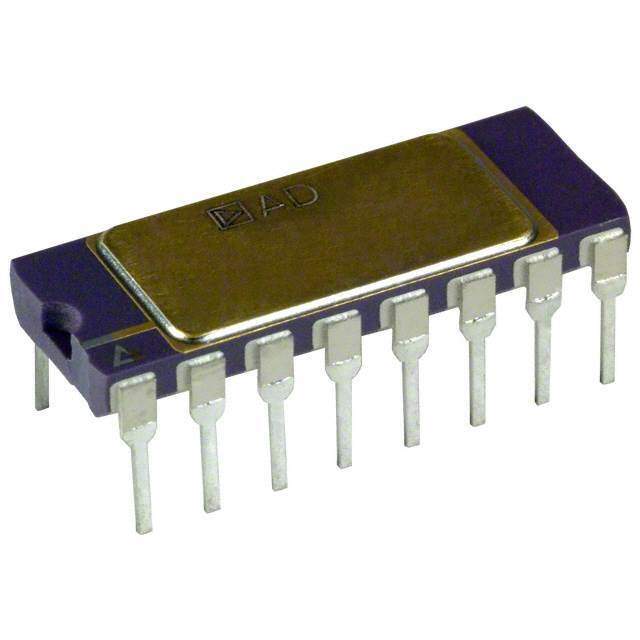

AD524BD

Part No AD524BD
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description Precision Instrumentation Amplifier
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Tube
Amplifier Type Instrumentation
Number of Circuits 1
SR - Slew Rate 5 V/μs
GBP - Gain Bandwidth Product 1MHz
-3db Bandwidth 1MHz
Current - Input Bias 25nA
Voltage - Input Offset 100μV
Operating Supply Current 3.5mA
Dual Supply Voltage (±) ±6 V ~ 18 V
Operating Temperature Range -25°C ~ 85°C
Mounting Style Through Hole
Package 16-CDIP (0.300", 7.62mm)
Manufacturer Package 16-CDIP Side Brazed
RoHS State Request Verification
Win Source Part Number 1136015-AD524BD
Manufacturer Homepage www.analog.com
Family Name AD524
Introduction Date September 09, 1996
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2019
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AD524BD CAD Model

Description

AD524BD Precision Instrumentation Amplifier

The AD524BD from Analog Devices Inc. is a high-precision, low-noise instrumentation amplifier designed to meet the stringent requirements of many signal processing applications. With its exceptional accuracy and versatility, it is an ideal choice for applications such as medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features:

  • High Precision: The AD524BD offers excellent linearity with a low nonlinearity specification of ±0.001% max at G = 1. This makes it perfect for applications requiring precise signal amplification.
  • Low Noise: With a low input noise voltage of 0.9 µV p-p (0.1 Hz to 10 Hz, G = 1000), the AD524BD ensures signal integrity and minimizes noise, making it suitable for high-performance applications.
  • Wide Gain Range: The amplifier provides a user-selectable gain range from 1 to 1000, which can be set with a single external resistor, offering flexibility in various application requirements.
  • High CMRR: The Common-Mode Rejection Ratio (CMRR) of AD524BD is greater than 120 dB (G = 10), which allows for accurate measurements in the presence of noise and common-mode signals.
  • Dual Supply Operation: It operates from ±4.5 V to ±18 V dual supplies, accommodating a variety of signal levels and providing ample headroom for a broad range of applications.
  • Robust Design: The AD524BD features protection against ESD events and has a wide operational temperature range from -40°C to +85°C, ensuring reliable performance in harsh environments.

Applications:

The AD524BD is suitable for a wide array of applications, including:

  • Medical instrumentation such as ECG and EEG monitors
  • Industrial process controls and automation systems
  • Precision data acquisition systems
  • Ground loop elimination
  • Strain gauge signal amplification
  • Transducer interfaces

The AD524BD's combination of accuracy, low noise, and flexibility make it a top choice for engineers and designers looking for a reliable solution to amplify low-level signals in complex electronic systems.
