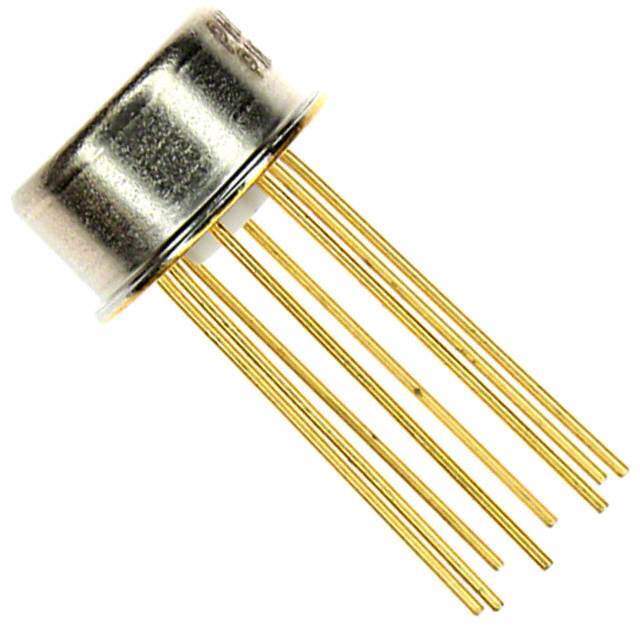

The AD549SH from Analog Devices Inc. is a high precision, low noise operational amplifier that has set the industry standard for performance in high-precision applications. Designed with the needs of sensitive instrumentation in mind, this op-amp offers a unique combination of low noise and high input impedance, making it ideal for use in applications such as medical instrumentation, sensor amplification, and precision data acquisition systems.

Key Features

• Ultra-Low Noise Performance: The AD549SH boasts an exceptional noise figure, minimizing the impact of noise in critical signal processing applications.
• High Input Impedance: With a JFET input stage, this operational amplifier provides a high input impedance, ensuring minimal loading on the signal source and preserving signal integrity.
• Low Input Bias Current: The device features a very low input bias current, which is essential for high-precision applications and reduces error in signal processing.
• Low Offset Voltage: It offers a low offset voltage that enhances the accuracy of the amplifier and reduces the need for external calibration.
• Wide Supply Range: The AD549SH can operate from a wide range of supply voltages, providing flexibility in various circuit designs.
• High Gain Bandwidth Product: This operational amplifier has a high gain bandwidth product, ensuring good frequency response for closed-loop gains.

Applications

The AD549SH is suitable for a wide range of high-precision applications, including:

• Medical Instrumentation
• Sensor Signal Amplification
• Test Equipment
• Professional Audio Equipment
• Analog-to-Digital Converter Front-Ends

Reliability and Quality

Analog Devices Inc. is known for its commitment to quality and reliability, and the AD549SH is no exception. It is designed to meet stringent industrial standards and undergoes rigorous testing to ensure it performs consistently across a variety of environmental conditions. With its robust construction and proven design, the AD549SH is a reliable choice for engineers who require the highest level of precision and stability in their electronic designs.
