Product Overview

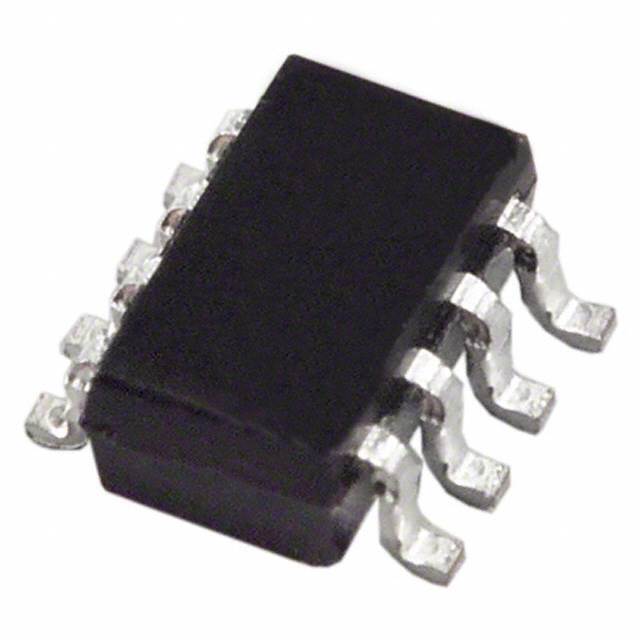

The AD5620BRJZ-1500RL7 is a high-precision digital-to-analog converter (DAC) from Analog Devices Inc., designed to provide reliable and accurate analog output for a wide range of applications. This component is part of the nanoDAC series, which are known for their compact size and high performance. The device is available in a small 8-lead SOT-23 package, making it suitable for space-constrained applications.

Key Features

• Resolution: The AD5620 features a 12-bit resolution, offering fine granularity in the analog output, which is essential for precise control in critical applications.
• Output Range: It provides a fixed output range of 0 V to 2.5 V, which can be a suitable range for many control and measurement systems.
• Reference: An on-chip, high-precision, low-drift 2.5 V reference gives the DAC a stable voltage reference, which is critical for maintaining accuracy over time and temperature.
• Interface: The device supports a three-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with a variety of microcontrollers and digital systems.
• Power Supply: It operates from a single 5 V supply, simplifying the power design for the system it is integrated into.
• Power-down Function: A power-down function is available to reduce power consumption when the DAC is not in use.
• Accuracy: The AD5620 offers high accuracy and low power consumption, making it ideal for portable and battery-powered applications.
• Temperature Range: It is specified for operation over the extended industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments.

Applications

The AD5620BRJZ-1500RL7 is versatile and can be used in various applications, including:

• Process control and automation
• Data acquisition systems
• Digital gain and offset adjustment
• Portable battery-powered instruments
• Medical equipment
• Automotive systems

Overall, the AD5620BRJZ-1500RL7 from Analog Devices Inc. is a robust and precise DAC solution that offers excellent performance for systems requiring high accuracy and low power consumption in a compact footprint.
