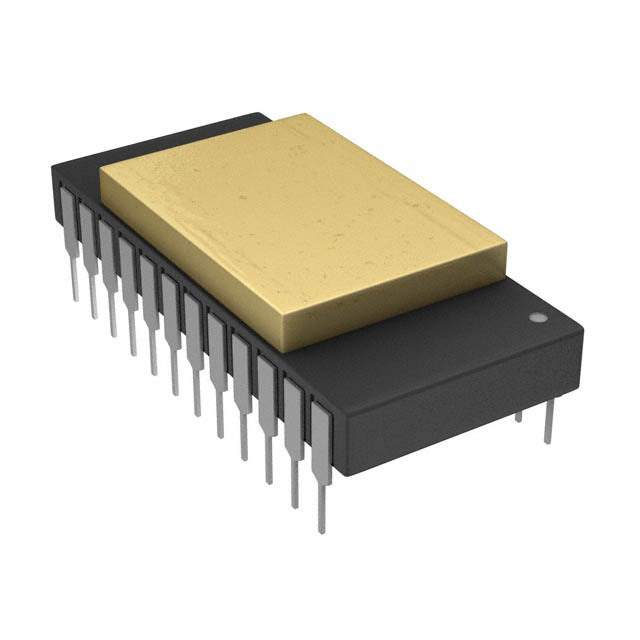

The AD565ATD from Analog Devices Inc. is a high-performance, monolithic 12-bit digital-to-analog converter (DAC) designed to deliver unparalleled accuracy and stability. This robust DAC is an ideal choice for applications that demand precise digital-to-analog conversion, such as industrial automation, medical instrumentation, and digital signal processing.

Key Features:

• Resolution: 12 bits of monotonic performance over temperature ensure reliable and consistent output for critical applications.
• Settling Time: Fast settling time allows for high-speed operation, making it suitable for applications that require quick response times.
• Output Range: The AD565ATD offers a full-scale output range, providing flexibility in a variety of system designs.
• Interface: Compatible with TTL and CMOS logic families, this DAC features a versatile digital interface for easy integration into a wide range of systems.
• Package: Housed in a durable and temperature-resistant package, the AD565ATD is designed for reliability in challenging environments.

Applications:

With its precision and speed, the AD565ATD is well-suited for multiple applications across various industries:

• Automated Test Equipment (ATE)
• Process Control Systems
• Data Acquisition Systems
• Medical Imaging Devices
• High-Resolution Imaging Systems

Technical Specifications:

The AD565ATD combines precision, speed, and versatility, making it an essential component for any system that requires high-quality digital-to-analog conversion. With Analog Devices Inc.'s reputation for excellence, this DAC stands out as a reliable choice for engineers and designers looking to enhance their electronic systems.
