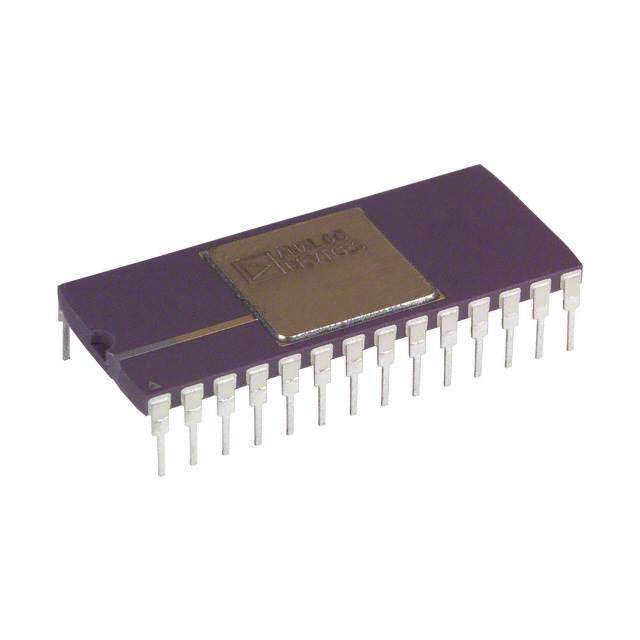

AD574AJDZ: Precision 12-Bit A/D Converter by Analog Devices Inc.

The AD574AJDZ is a state-of-the-art 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc., a leader in high-performance semiconductors. This precision ADC is designed for direct interfacing to a microprocessor bus, making it an ideal choice for applications in data acquisition, instrumentation, and process control.

Featuring a complete, monolithic ADC with an integrated 12-bit, capacitor-based, successive approximation register (SAR) ADC, the AD574AJDZ offers a full-scale range of ±10V. It is well-suited for applications requiring high accuracy and reliability, with a total unadjusted error of less than ±1 LSB and no missing codes over its full operating temperature range.

The device includes a precision voltage reference, clock oscillator, and high-speed, high-impedance analog input. Its versatile design allows for both single-ended and differential inputs, giving users flexibility in their system design. In addition, the AD574AJDZ features a fast conversion time, typically converting within 25 microseconds, enabling efficient data processing in real-time applications.

With its tri-state output buffers, the AD574AJDZ can directly drive the data bus. These buffers can be disabled for bus sharing with other devices. The ADC also offers a DATA READY signal (RDY), which indicates the completion of a conversion, allowing for optimal timing control within a microprocessor-based system.

The robust construction of the AD574AJDZ ensures its performance in demanding environments, with an operating temperature range from -25°C to +85°C. Packaged in a 28-pin CERDIP, this ADC is built for durability and long-term stability.

For designers and engineers looking for a reliable and high-performance ADC solution, the AD574AJDZ from Analog Devices Inc. represents a premium choice that combines precision, speed, and ease of integration into a variety of digital systems.

With its comprehensive features and robust design, the AD574AJDZ continues to be a preferred choice for professionals requiring a high-quality ADC that delivers consistent performance and integrates seamlessly with their existing microprocessor infrastructure.
