AD7124-8BCPZ-RL7: Precision Analog-to-Digital Converter

The AD7124-8BCPZ-RL7 is a highly integrated, low noise, low power, 24-bit, sigma-delta (Σ-Δ) analog-to-digital converter (ADC) brought to you by Analog Devices Inc., a leader in precision signal processing technology. This ADC is designed to offer exceptional precision and flexibility, making it an ideal choice for a wide range of industrial and instrumentation applications.

At the heart of the AD7124-8BCPZ-RL7 is its multi-channel capability, supporting up to 8 differential or 15 single-ended inputs. This feature allows for multiple sensor types to be connected directly to the ADC, simplifying design and reducing system complexity. The device's input multiplexer (MUX) is fully configurable, providing users with the versatility to meet specific channel requirements.

The onboard, low noise programmable gain array (PGA) ensures that signals of small amplitude can be amplified to utilize the full dynamic range of the ADC converter. This makes the product highly suitable for applications requiring high dynamic range and sensitivity, such as medical instrumentation, process control, and precision industrial automation.

The AD7124-8BCPZ-RL7 operates within a power supply range of 2.7V to 3.6V and features a power-saving mode that significantly reduces current consumption when the device is not converting. This makes it an excellent choice for battery-powered devices and applications where power efficiency is crucial.

It also includes a host of on-chip features such as a low drift internal voltage reference, an oscillator, and a temperature sensor, all of which contribute to reducing the external component count and system cost. The integrated reference and oscillator eliminate the need for external components and ensure stable performance over temperature and time.

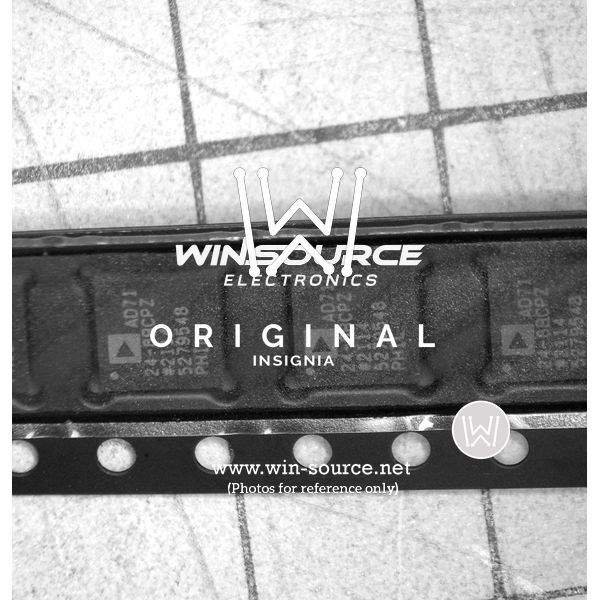

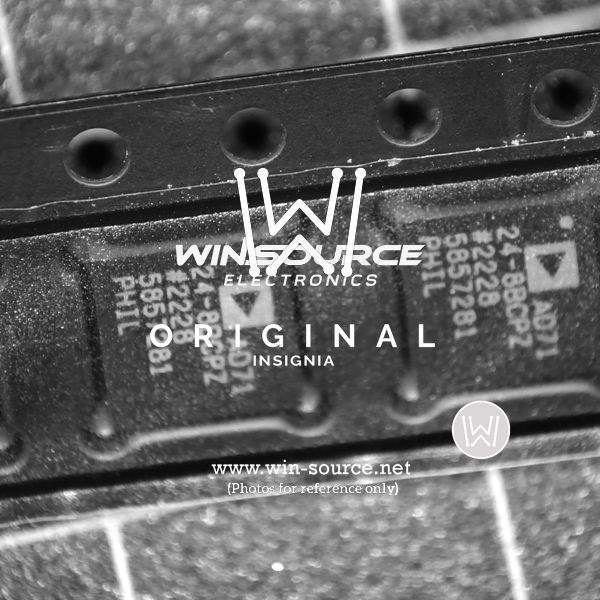

The device is packaged in a compact 32-lead LFCSP (5 mm × 5 mm), providing a space-saving solution for designs where board real estate is at a premium. The AD7124-8BCPZ-RL7 also supports SPI communication, allowing for easy interfacing with microcontrollers and digital systems.

In summary, the AD7124-8BCPZ-RL7 from Analog Devices Inc. is a versatile, high-performance ADC that offers a comprehensive feature set for demanding precision measurement applications.
