Analog Devices AD7864AS-2: High-Speed, Low-Power, 4-Channel ADC

The AD7864AS-2 is a state-of-the-art 12-bit Analog-to-Digital Converter (ADC) from Analog Devices Inc., designed to cater to a wide array of applications that demand high-speed data acquisition without compromising power efficiency. This ADC is an ideal solution for multi-channel systems such as phase array radar, medical imaging, and data acquisition systems where space and power are at a premium.

Key Features:

• Resolution: 12-bit ADC, ensuring precise digital representation of the analog input signal.
• Channels: 4 independent analog channels, allowing for simultaneous sampling and processing of multiple signals.
• Conversion Rate: Fast throughput rate of 1.5 MSPS (mega-samples per second) per channel, suitable for high-speed applications.
• Low Power Consumption: Optimized for low power operation, making it an excellent choice for portable and battery-powered devices.
• Input Range: A flexible input range that can be configured to accommodate various signal levels.
• Interface: Serial interface for easy connection to microprocessors and digital systems.

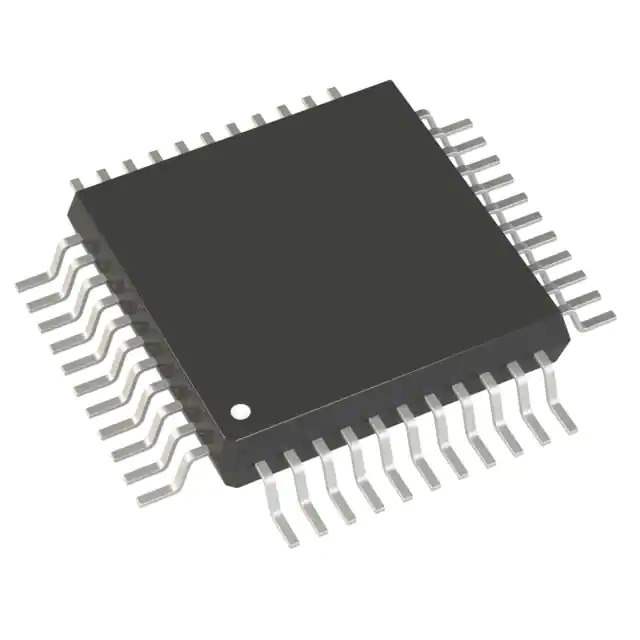

• Package: Available in a compact 48-lead LQFP (Low-profile Quad Flat Package), saving valuable board space.

Performance and Reliability:

The AD7864AS-2 is built to deliver consistent, reliable performance with features like on-chip track and hold functions, and a high degree of isolation between channels to prevent crosstalk. Its robust design ensures operation in demanding environments and across a wide temperature range.

Applications:

With its versatile feature set, the AD7864AS-2 is well-suited for a variety of applications including:

• Industrial Control Systems
• Medical Instrumentation
• Scientific Analysis Equipment
• Communications Systems

For engineers and designers looking for a high-speed, multi-channel ADC with excellent power efficiency, the AD7864AS-2 from Analog Devices Inc. presents an optimal solution that does not compromise on performance or quality.
