AD8116JSTZ - High-Speed 16 x 16 Video Crosspoint Switch

The AD8116JSTZ is a high-performance 16 x 16 video crosspoint switch designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This versatile device is capable of routing any of its 16 inputs to any or all of its 16 outputs, making it an ideal solution for professional video switching, routing, and signal distribution in broadcast studios, video conferencing, and multimedia applications.

Key Features

• High Bandwidth: With a wide bandwidth of 200 MHz, the AD8116JSTZ can handle high-speed video signals without compromising the integrity of the data, ensuring crisp and clear video quality.
• Low Crosstalk: The device features an exceptionally low crosstalk between channels at -83 dB at 5 MHz, which is critical for maintaining signal clarity in complex video systems.
• Flexible Control Options: It offers multiple control options including serial or parallel programming interfaces, making it adaptable to a variety of system requirements.
• Gain Programmability: Each output has programmable gain control, allowing fine-tuning of signal levels to match different load conditions and cable lengths.
• Nonblocking Architecture: The nonblocking matrix design ensures that multiple outputs can receive the same input without interference, providing versatile routing capabilities.

Product Specifications

• Part Number: AD8116JSTZ

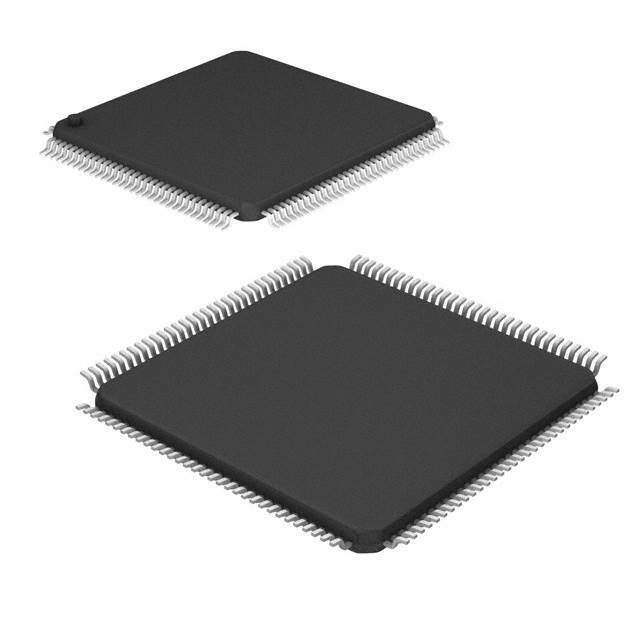

• Package: 100-lead LQFP (Low-profile Quad Flat Package)
• Operating Temperature Range: -40°C to +85°C, suitable for industrial environments.
• Supply Voltage: ±5 V

The AD8116JSTZ is not only powerful but also user-friendly. Its internal memory allows for the storage of multiple configurations, which can be quickly recalled for fast switching between different video setups. Additionally, the device's on-chip diagnostics facilitate easy monitoring and troubleshooting of the video system.

For design engineers looking for a reliable and flexible video switching solution, the AD8116JSTZ offers the performance and features required for today's demanding video applications. Its robust design and high-quality signal handling make it a top choice for any application requiring a high-speed crosspoint video switch.
