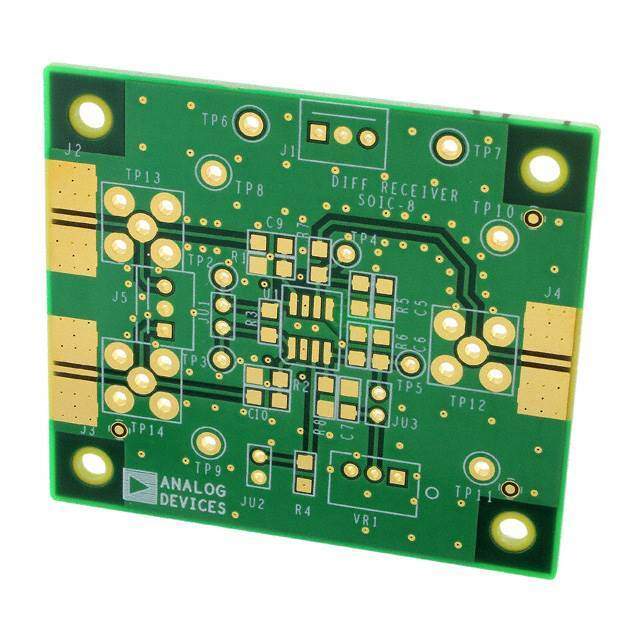

The AD8129AR-EBZ is a high-performance evaluation board from Analog Devices Inc., designed for testing and evaluating the capabilities of the AD8129 Low Cost, Low Power Differential Receiver Amplifier. This evaluation board is a crucial tool for engineers and designers who require a reliable platform for prototyping and testing circuits that incorporate the AD8129 amplifier in high-speed differential signal applications.

Key Features

• High Bandwidth: The AD8129AR-EBZ boasts a bandwidth of 200 MHz, making it ideal for high-speed data acquisition, video processing, and other applications requiring rapid signal processing.
• Adjustable Gain: Gain can be set from 1 to 10 through onboard resistors, allowing users to tailor the amplification to their specific needs.
• Single Supply Operation: The board operates on a single 5 V supply, simplifying power management in embedded systems.
• Robust Design: The evaluation board is designed to handle a differential input voltage range of ±10 V, providing versatility in handling various signal levels.
• Easy to Use: With comprehensive documentation and support from Analog Devices, the AD8129AR-EBZ is user-friendly and straightforward to integrate into a wide range of applications.

Applications

The AD8129AR-EBZ is well-suited for a variety of applications, including:

• Differential line receivers
• ADC drivers
• Twisted pair cable drivers
• High-speed communications
• Video distribution networks

Technical Specifications

Below are some of the technical specifications of the AD8129AR-EBZ:

• Supply Voltage: 5 V
• Bandwidth: 200 MHz
• Input Voltage Range: ±10 V
• Adjustable Gain: 1 to 10

The AD8129AR-EBZ evaluation board from Analog Devices Inc. is an excellent platform for those looking to utilize the AD8129 amplifier's capabilities in their designs. Its combination of high-speed performance, adjustable gain, and robust design make it a versatile tool for a wide range of differential signal processing applications.
