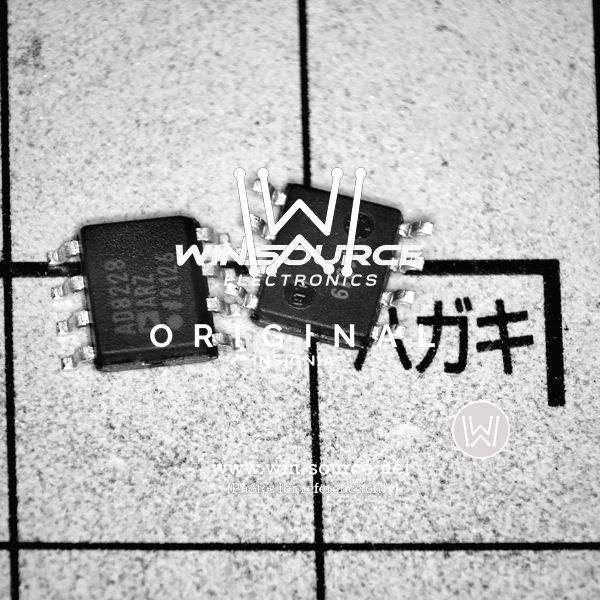

AD8228ARMZ-R7 High Gain Precision Instrumentation Amplifier

The AD8228ARMZ-R7 is a robust, high-performance instrumentation amplifier designed and manufactured by Analog Devices Inc., a leader in precision signal processing technology. This precision amplifier is part of the AD8228 series, renowned for its high gain accuracy and ease of use in a wide range of industrial, medical, and automation applications.

With a fixed gain of 1000 V/V, the AD8228ARMZ-R7 ensures excellent gain stability and minimizes the need for external components, thereby simplifying circuit design and reducing board space. Its high gain precision is complemented by a low input offset voltage and low noise, making it an ideal choice for small signal amplification in measurement and control systems.

The device operates over a wide single-supply range from 4.5 V to 30 V, or dual supplies of ±2.25 V to ±15 V, providing designers with flexibility in various power supply configurations. Additionally, the AD8228ARMZ-R7 features a high common-mode rejection ratio (CMRR) over a wide frequency range, which is critical for applications in noisy environments where common-mode signals are prevalent.

Key features of the AD8228ARMZ-R7 include:

• Fixed gain of 1000 V/V
• Low input offset voltage
• Low noise
• Wide power supply range
• High CMRR over frequency
• Operating temperature range: -40°C to +125°C
• RoHS compliant
• Supplied in a compact 8-lead MSOP package

This instrumentation amplifier is suitable for a variety of applications, including precision data acquisition systems, medical instrumentation, strain gauge amplifiers, and industrial process controls. Its high level of integration and performance makes it a reliable choice for demanding applications that require accurate and stable signal conditioning.

The AD8228ARMZ-R7 is available in a miniaturized 8-lead MSOP package, which is ideal for space-constrained applications. It is also specified over the extended industrial temperature range, ensuring reliable operation in challenging thermal environments. The product's quality and reliability are backed by Analog Devices Inc.'s commitment to high manufacturing standards and rigorous testing procedures.
