AD8232ACPZ-R7 Heart Rate Monitor IC

The AD8232ACPZ-R7 is a high-performance, integrated signal conditioning block specifically designed for heart rate monitoring and other biopotential measurement applications. Manufactured by Analog Devices Inc., this compact, low-power chip is an ideal solution for portable medical and fitness applications where size and power efficiency are critical.

The AD8232 is an integrated signal conditioning block for ECG (electrocardiogram) and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement.

This system-in-package (SiP) features a two-pole high-pass filter to eliminate motion artifacts and electrode half-cell potential. The AD8232 also includes a three-pole low-pass filter with a cutoff frequency of 40Hz, which is suitable for monitoring the ECG signal. The device operates within a wide power supply range from 2.0V to 3.5V, allowing it to be used in a variety of battery-powered devices.

The AD8232ACPZ-R7 also has a fast restore feature that reduces the long-tail duration of the filtered output signal, improving responsiveness to step changes in input. This is particularly useful for heart rate monitoring systems that require quick adaptation to changing electrode conditions.

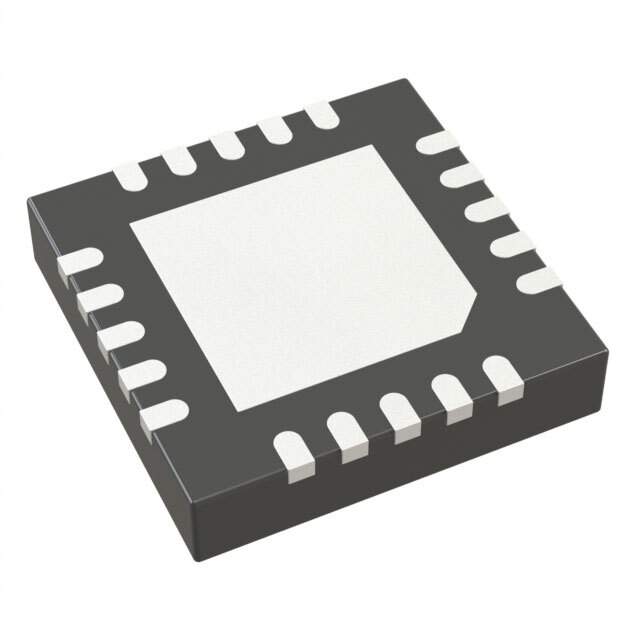

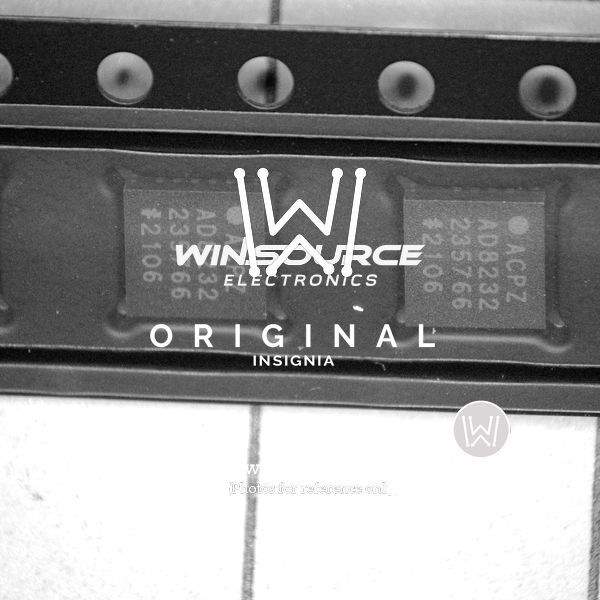

For ease of use, the AD8232ACPZ-R7 comes in a compact 20-lead LFCSP (Lead Frame Chip Scale Package) which is conducive for space-constrained applications. Furthermore, it has an operational temperature range of -40°C to +85°C, making it versatile for various environmental conditions.

With its integrated features and robust design, the AD8232ACPZ-R7 from Analog Devices Inc. is a sophisticated yet straightforward solution for developers looking to create reliable and efficient heart rate monitoring systems.

Note: Before integrating this IC into a medical device, it is crucial to ensure compliance with the relevant medical standards and certifications.
