Product Overview: AD829JRZ-REEL7 from Analog Devices Inc.

The AD829JRZ-REEL7 is a high-performance, low-noise operational amplifier from Analog Devices Inc., designed for use in a wide array of applications including professional video electronics, CCD imaging systems, and ultrasound equipment. This op-amp is well-suited for any application that requires high speed, low noise, and excellent dynamic performance.

Key Features

• High Speed: With a bandwidth of 120 MHz at a gain of +1, the AD829JRZ-REEL7 is capable of handling fast signals, making it ideal for high-speed data acquisition systems and video processing.
• Low Noise: The device boasts an exceptionally low noise figure, with a voltage noise of 2.9 nV/√Hz at 10 kHz, ensuring signal integrity in sensitive applications.
• Low Distortion: Total harmonic distortion (THD) is minimized, which is critical for high-fidelity audio processing and other applications requiring clean amplification of signals.
• High Output Current: The op-amp can deliver a high output current, making it suitable for driving heavy loads or buffering for ADCs.
• Single-Supply Operation: It can operate from a single supply voltage ranging from +5V to +15V, or dual supplies of ±2.5V to ±7.5V, providing flexibility in various circuit designs.

Applications

• Video and audio processing equipment
• Professional cameras and CCD imaging systems
• Ultrasound and other medical imaging devices
• Telecommunications
• Active filters and signal conditioning
• Buffering for analog-to-digital converters (ADCs)

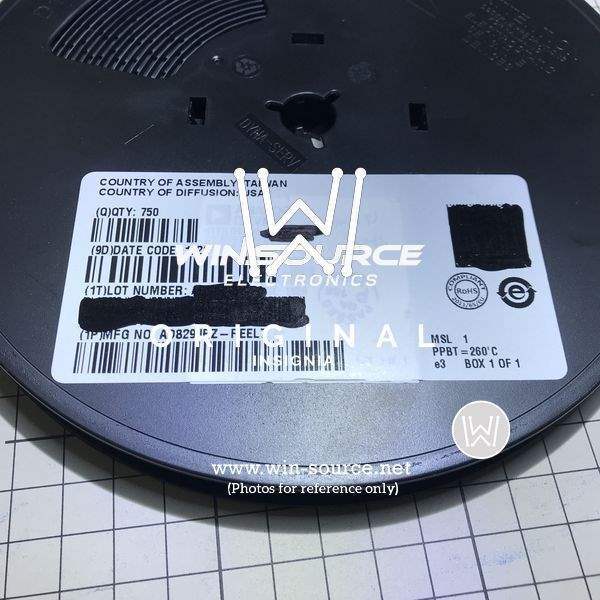

The AD829JRZ-REEL7 comes in a compact SOIC package and is part of a tape and reel packaging, denoted by the "REEL7" suffix, which is suitable for automated assembly processes, making it a convenient choice for mass production. The reliability and performance of the AD829JRZ-REEL7 make it a go-to choice for engineers and designers looking for a high-quality operational amplifier that can meet the demands of advanced electronic systems.

With its combination of speed, low noise, and robustness, the AD829JRZ-REEL7 from Analog Devices Inc. is a versatile component that can enhance the performance of a wide range of products.
