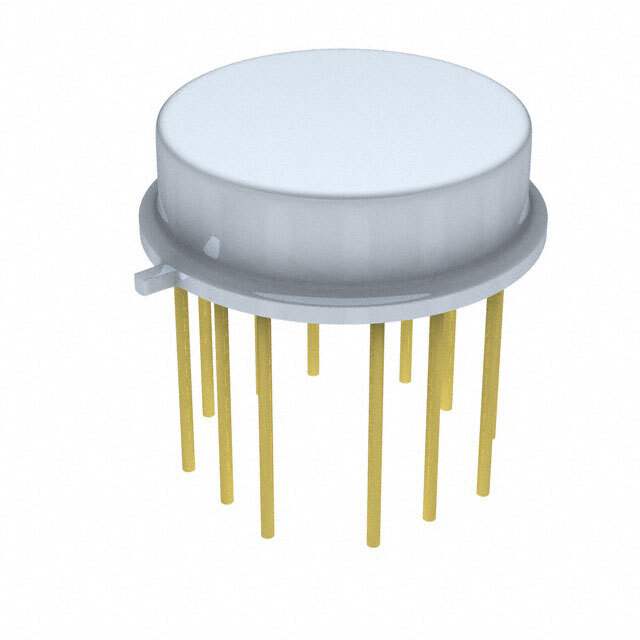

The AD843BH from Analog Devices Inc. is a high-performance, precision operational amplifier that offers a perfect blend of speed and accuracy. Designed with the needs of high-fidelity applications in mind, this operational amplifier provides a unique combination of fast settling time, low distortion, and high slew rate, making it an ideal choice for a wide range of applications, including data acquisition systems, medical instruments, and professional audio equipment.

Key Features

• Fast Settling Time: The AD843BH is designed to settle to 0.01% in just 35 ns, ensuring high-speed performance in applications requiring fast and precise signal processing.
• High Slew Rate: With a slew rate of 250 V/μs, this operational amplifier can handle rapid changes in input signals without distortion, maintaining signal integrity.
• Low Distortion: The device boasts a Total Harmonic Distortion (THD) of -90 dB, which is critical for high-fidelity audio applications and precision instrumentation.
• Wide Bandwidth: It offers a gain bandwidth product of 34 MHz, providing ample bandwidth for most high-speed amplification tasks.
• Robust Output Drive Capability: The AD843BH can drive capacitive loads up to 500 pF, which is beneficial for driving cables or other capacitive inputs.

Applications

• Data Acquisition Systems
• Medical Instrumentation
• Professional Audio Equipment
• Active Filters
• Fast Amplifiers for ADCs

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the AD843BH is no exception. It operates over a wide temperature range and is available in a hermetically sealed ceramic DIP, ensuring long-term stability and performance under varying environmental conditions. This product is part of a long lineage of precision amplifiers from Analog Devices, a trusted name in the industry.

Whether you're designing a high-end audio interface, a sensitive medical device, or a complex data acquisition system, the AD843BH provides the performance and reliability you need to ensure your product operates at its best.
