AD9054ABSTZ-200: High-Performance ADC from Analog Devices Inc.

The AD9054ABSTZ-200 is a state-of-the-art analog-to-digital converter (ADC) developed by Analog Devices Inc., a leader in high-performance semiconductors. This particular model is designed to offer exceptional accuracy and speed, making it an ideal choice for demanding applications that require high data acquisition rates and precise signal processing.

Featuring a 200 MSPS (mega samples per second) sampling rate, the AD9054ABSTZ-200 is capable of capturing fast transient signals with minimal distortion. It operates with an 8-bit resolution, providing a fine balance between high-speed performance and resolution to meet the needs of a variety of digital signal processing (DSP) applications.

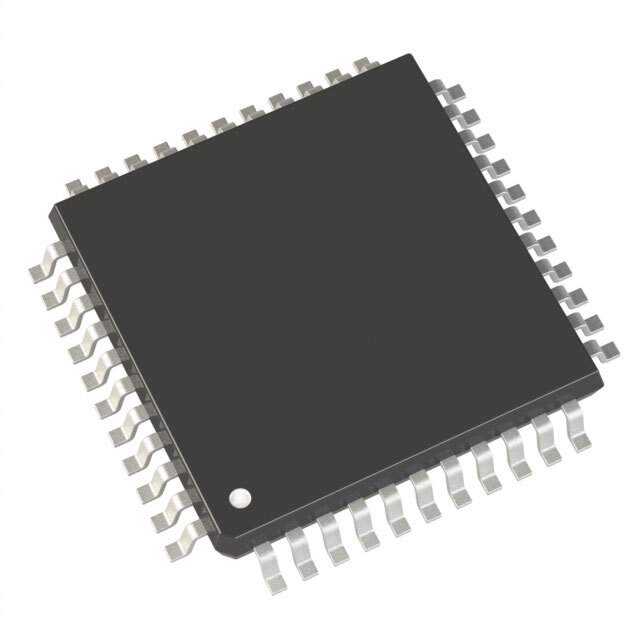

The device is housed in a compact 48-lead LQFP (low-profile quad flat package) that is designed for space-constrained applications. Its small form factor, combined with low power consumption, makes it an excellent choice for portable and embedded systems. The AD9054ABSTZ-200 operates over an industrial temperature range, ensuring reliable performance in harsh environments.

Among its advanced features, the AD9054ABSTZ-200 includes an on-chip reference and track-and-hold circuitry, which simplifies the design process by reducing the number of external components required. This integration helps to minimize system cost and complexity while providing robust performance.

The ADC's versatile digital interface is compatible with a variety of DSP and microprocessor systems. It supports both CMOS and TTL logic levels, allowing for easy integration into existing designs. The AD9054ABSTZ-200 also includes a flexible format for output data, which can be adjusted to match the specific requirements of the application.

Ideal for applications such as medical imaging, communications, radar systems, and instrumentation, the AD9054ABSTZ-200 is a testament to Analog Devices Inc.'s commitment to providing high-quality components that push the boundaries of what's possible in electronic design. With its exceptional performance and reliability, this ADC is set to become a key component in the next generation of advanced electronic systems.
