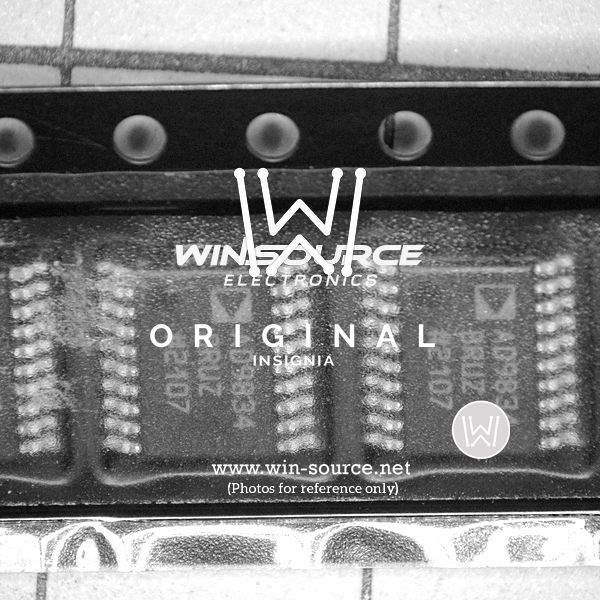

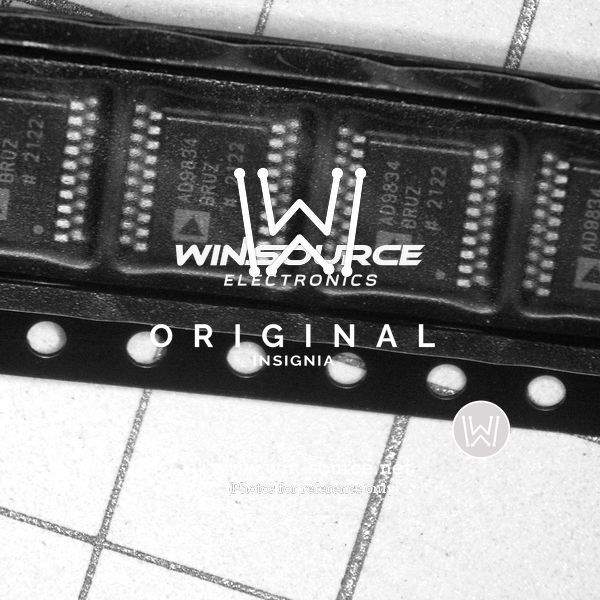

AD9834BRUZ-REEL7 - Precision Waveform Generator IC

The AD9834BRUZ-REEL7 is a highly integrated waveform generator IC produced by Analog Devices Inc., renowned for its precision and versatility in generating sinusoidal, triangular, and square wave outputs. This compact, high-performance component is an ideal choice for applications requiring a programmable waveform generator with a low power footprint.

Key Features:

• Frequency Range: The AD9834BRUZ-REEL7 offers a wide frequency range, making it suitable for a variety of applications, including communications systems, instrumentation, and consumer electronics.
• Resolution: With a 10-bit DAC resolution, this IC delivers fine frequency and phase tuning capabilities, ensuring precise signal generation for demanding applications.
• Programmability: Users can program the device through a serial interface, allowing for easy integration into digital systems and the ability to dynamically adjust waveform parameters.
• Low Power Consumption: The device operates on a 2.3 V to 5.5 V power supply, making it an energy-efficient choice for portable and battery-operated equipment.
• Form Factor: Supplied in a compact TSSOP (Thin Shrink Small Outline Package), the AD9834BRUZ-REEL7 is designed for space-constrained applications.
• Temperature Range: This IC operates over an industrial temperature range, ensuring reliable performance under varying environmental conditions.

Applications:

The AD9834BRUZ-REEL7 is well-suited for a variety of applications, including but not limited to:

• Function Generators
• Portable Instrumentation
• Phase-locked Loops (PLLs)
• Test and Measurement Systems
• Wireless Infrastructure

With its combination of performance, programmability, and low power consumption, the AD9834BRUZ-REEL7 from Analog Devices Inc. stands out as a superior choice for designers seeking a reliable and flexible waveform generation solution.
