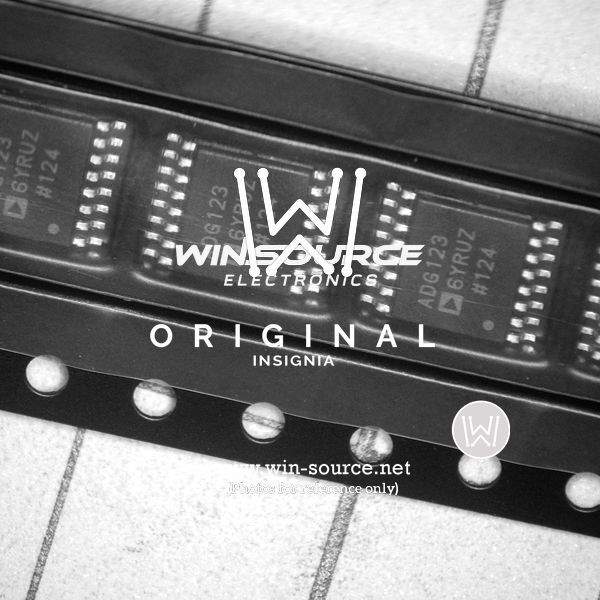

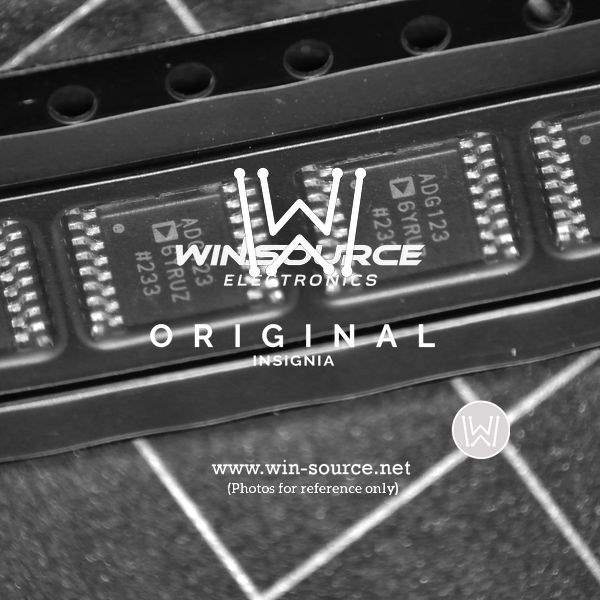

The ADG1236YRUZ is a robust, high-performance analog switch produced by Analog Devices Inc., a leading global manufacturer known for its precision engineering and innovative design in the field of semiconductor technology. This particular model is part of the ADG1236 series, which is renowned for its reliability and versatility in a wide range of applications.

Key Features

• Dual SPDT Switch Configuration: The ADG1236YRUZ features a dual single-pole double-throw (SPDT) switch configuration, allowing for flexible signal routing in complex circuits.
• Low On-Resistance: With an ultra-low on-resistance, this switch ensures minimal signal distortion and power loss, making it ideal for precision applications.
• 3.3 V to 5 V Single Supply Operation: The device operates on a single supply voltage ranging from 3.3 V to 5 V, accommodating various system requirements without the need for additional power sources.
• Wide Operating Temperature Range: It is designed to function optimally across a broad temperature range, making it suitable for use in harsh environments.
• Fast Switching Times: The ADG1236YRUZ boasts rapid switching times, ensuring quick response in applications that demand high-speed operation.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is built-in, safeguarding the device against damage from static electricity.

Applications

The versatility of the ADG1236YRUZ allows it to be utilized in a multitude of applications, including but not limited to:

• Automatic Test Equipment (ATE)
• Data Acquisition Systems
• Communication Systems
• Audio and Video Switching
• Relay Replacement

Product Specifications

For engineers and designers seeking a reliable and efficient solution for their switching needs, the ADG1236YRUZ from Analog Devices Inc. stands out as a superior choice, blending performance with durability.
