The ADG1409YCPZ-REEL7 is a high-performance, monolithic analog multiplexer from Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This multiplexer is part of the robust ADG1409 series and comes in a surface-mount, lead-free package that is well-suited for a wide range of applications, including industrial, communication, healthcare, and consumer electronics.

Key Features

• Channel Configuration: The device features a 4:1 single channel multiplexer, allowing for precise and flexible signal routing.
• Low On Resistance: The ADG1409YCPZ-REEL7 boasts a low on resistance of typically 4 ohms, ensuring minimal signal distortion and power loss.
• Single Supply Operation: This multiplexer operates from a single 3.3V to 5V power supply, simplifying power management in various systems.
• Fast Switching Times: With tON of 30 ns and tOFF of 20 ns, the device provides quick response times for critical applications.
• ESD Protection: It includes enhanced electrostatic discharge (ESD) protection, ensuring reliability and longevity in harsh environments.
• Extended Temperature Range: The ADG1409YCPZ-REEL7 operates over an extended industrial temperature range of -40°C to +125°C, making it suitable for extreme conditions.

Applications

The versatility of the ADG1409YCPZ-REEL7 allows it to be used in various applications, including:

• Data acquisition systems
• Communication systems
• Audio and video switching
• Automatic test equipment
• Relay replacement

Package and Availability

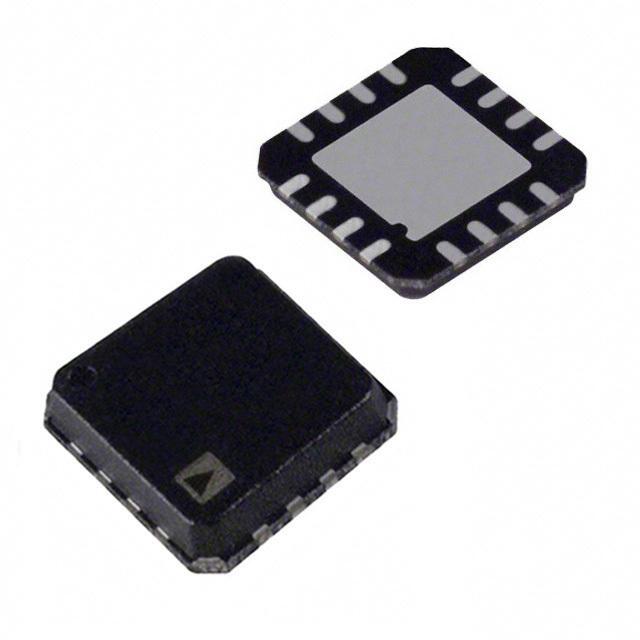

The device is available in a compact 16-lead LFCSP (Lead Frame Chip Scale Package) and is part of a tape and reel packaging, denoted by the suffix 'REEL7', which facilitates automated assembly processes for high-volume production. The ADG1409YCPZ-REEL7 is RoHS compliant and adheres to the highest environmental and manufacturing standards.

With its robust feature set, the ADG1409YCPZ-REEL7 from Analog Devices Inc. is an excellent choice for designers looking for a reliable and high-performance analog multiplexer solution.
