ADG901BRMZ-REEL7 - High Performance RF Switch from Analog Devices Inc.

The ADG901BRMZ-REEL7 is a state-of-the-art RF switch designed and manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This particular model is part of the industry-renowned ADG901 series, which is known for its high isolation, low insertion loss, and excellent linearity.

With a frequency range from DC to 4 GHz, the ADG901BRMZ-REEL7 is optimized for a variety of RF applications, including wireless communications, test equipment, and base stations. The switch is fabricated using Analog Devices' advanced silicon IC process, enabling it to achieve high performance with a single positive supply voltage ranging from +1.8 V to +5.5 V.

One of the key features of this product is its low insertion loss of 0.5 dB typical at 1 GHz, which helps in maintaining signal integrity and reduces power loss. Moreover, the switch boasts an impressive isolation of 45 dB typical at 1 GHz, ensuring minimal cross-talk between channels and preserving the quality of the transmitted signal.

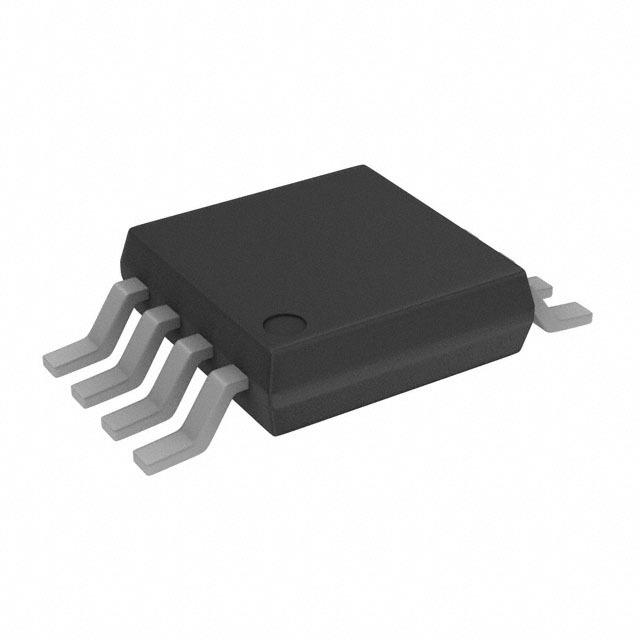

The ADG901BRMZ-REEL7 comes in a compact MSOP (Mini Small Outline Package) that is surface-mountable, making it suitable for space-constrained applications. This package is offered in tape and reel form, with the "REEL7" suffix indicating a 7-inch reel quantity, facilitating efficient handling and manufacturing processes.

The switch is controlled by a single TTL/CMOS compatible input, which simplifies the interface with digital systems. Its fast switching speed of less than 20 ns allows for quick transitions between channels, which is essential for high-speed RF switching applications.

In conclusion, the ADG901BRMZ-REEL7 by Analog Devices Inc. is a high-performance RF switch that offers a perfect blend of low insertion loss, high isolation, and fast switching speed, making it an excellent choice for designers who require a reliable and efficient solution for their RF signal routing needs.
