ADL5502ACBZ

Part No ADL5502ACBZ
Manufacturer Analog Devices Inc.
Catalog RF Detectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Reference Date Code 2011+

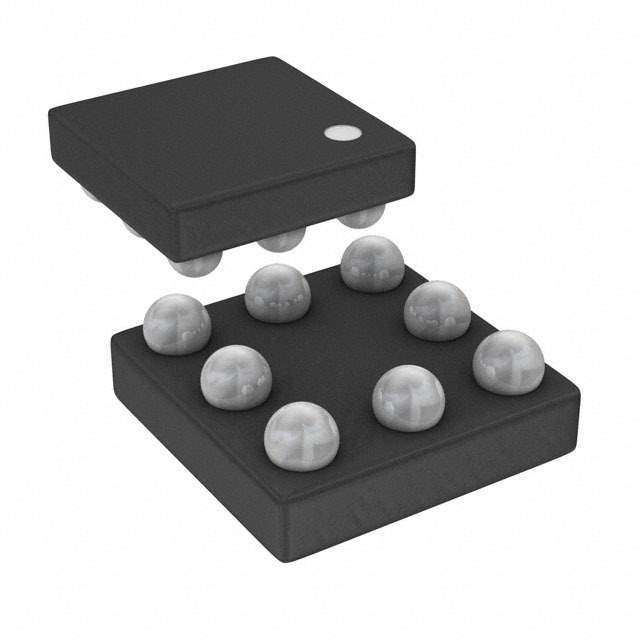

Reference case WLCSP8
Manufacturer Analog Devices Inc.
Manufacturer Homepage www.analog.com
Win Source Part Number 713405-ADL5502ACBZ
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADL5502ACBZ CAD Model

Description

The ADL5502ACBZ is a TruPwr™ detector from Analog Devices Inc. It is a high-accuracy, wide dynamic range RF detector that operates from low frequencies up to 2.2 GHz. It is designed to measure the true RMS power of RF signals, regardless of the modulation scheme or waveform. This detector is commonly used in wireless infrastructure, instrumentation, and communication systems.

Applications

  • Wireless Infrastructure: Used in base stations and repeaters for power monitoring and control.
  • Instrumentation: Employed in spectrum analyzers, signal generators, and power meters.
  • Communication Systems: Utilized in radio communication systems for power measurement and calibration.
  • RF Power Control: Integrated into RF power control loops for precise power adjustment.
  • Test Equipment: Found in various types of RF test equipment for accurate power measurement.

Features

  • True RMS Detection: Provides accurate RMS power measurement, independent of signal waveform.
  • Wide Dynamic Range: Offers a wide dynamic range for measuring signals of varying amplitudes.
  • High Accuracy: Delivers high accuracy for reliable power measurements.
  • Wide Frequency Range: Operates from low frequencies up to 2.2 GHz.
  • Low Power Consumption: Consumes minimal power for efficient operation.

Benefits

  • Accurate Power Measurement: Enables precise power measurement for critical applications.
  • Improved System Performance: Enhances the performance of wireless and communication systems.
  • Simplified Calibration: Simplifies the calibration process for RF equipment.
  • Reduced Design Complexity: Reduces the complexity of power control circuits.
  • Enhanced System Reliability: Provides stable and reliable performance in demanding applications.

Additional Details

The ADL5502ACBZ typically features a small form factor package for compact circuit designs. It requires a single supply voltage for operation. It's crucial to consult the manufacturer's datasheet for detailed specifications, including the supply voltage range, input power range, and operating temperature range. Proper impedance matching is essential for accurate power measurement. It may require external components such as resistors and capacitors to optimize the performance. The output voltage is proportional to the RMS power of the input signal.
