Introducing the ADL5523ACPZ-R7 RF Amplifier by Analog Devices Inc.

The ADL5523ACPZ-R7 is a high-performance RF amplifier designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This device is part of a series that is renowned for its exceptional signal amplification capabilities in a wide range of wireless applications. The ADL5523ACPZ-R7 is specifically engineered to meet the rigorous demands of modern RF and microwave communications systems.

Key Features

• Frequency Range: The ADL5523ACPZ-R7 operates over a broad frequency range, making it suitable for various applications, including base stations, repeaters, and general-purpose RF and IF amplification.
• High Linearity: With outstanding linearity, this amplifier ensures minimal distortion in signal amplification, critical for high-quality communications and broadcasting.
• Low Noise Figure: The low noise figure of the ADL5523ACPZ-R7 minimizes additional noise in signal chains, providing clearer and more accurate signals.
• Single Power Supply: Designed to operate on a single 5V power supply, this amplifier simplifies power management within electronic systems.
• Integrated Active Bias: The active biasing circuitry ensures stable performance over temperature and process variations, enhancing the reliability of the device.

Applications

The versatility of the ADL5523ACPZ-R7 makes it an ideal choice for a multitude of RF applications. It is particularly well-suited for:

• Wireless infrastructure
• Cellular base stations
• RF/IF gain blocks
• Repeaters and DAS systems
• Public safety communications

Package and Quality

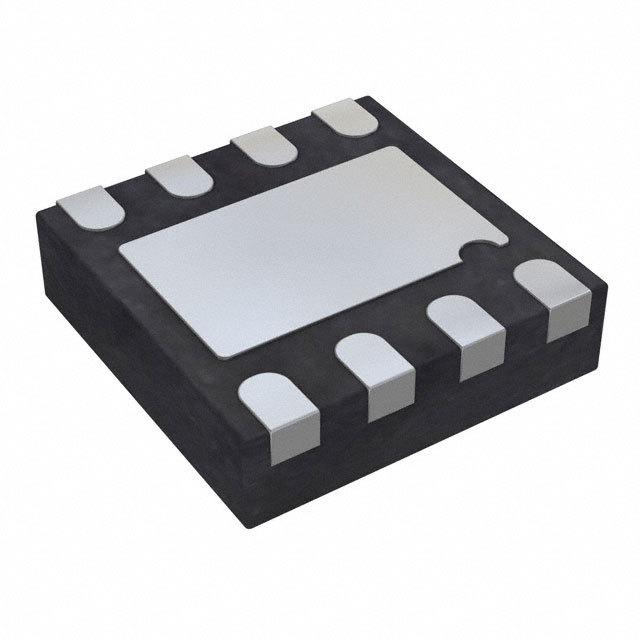

The ADL5523ACPZ-R7 comes in a compact, RoHS-compliant, 3 mm x 3 mm LFCSP package that is suitable for space-constrained designs. Analog Devices Inc. ensures high standards of quality and reliability, making this amplifier a trusted component in any RF signal chain.

For engineers and designers looking for an RF amplifier that delivers robust performance with a balance of low noise and high linearity, the ADL5523ACPZ-R7 from Analog Devices Inc. is an excellent choice. Its versatility and reliability continue to make it a go-to solution for advanced RF systems.
